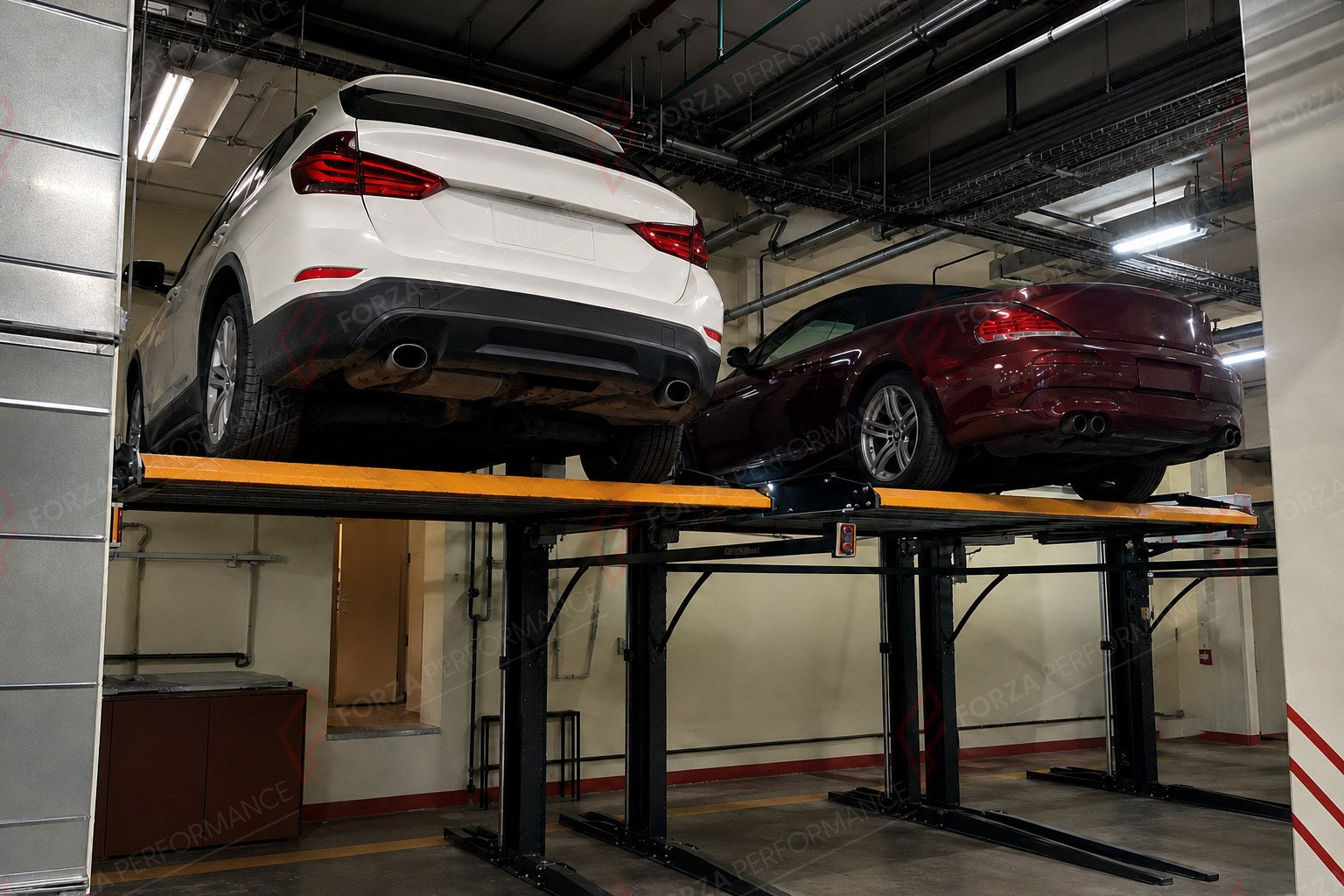

The TP-270 is a two-post parking lift (car stacker) that stores two vehicles in a single parking space - park one car up top and a second underneath. Rated for 2,700 kg (5,950 lb), it handles most sedans, crossovers and mid-size SUVs.
Park two cars in one space
Ideal for a home garage that has outgrown its footprint, a collector who needs room for a project car, or a dealer displaying more inventory on the same lot.
Built to last
Load-bearing parts are CNC-cut for a precise, repeatable fit and finished with a 100% powder-coat process for lasting corrosion resistance.
Safety first
- Multi-point mechanical anti-fall locks engaged throughout travel
- Hydraulic-lock protection and overload protection valve
- Low-voltage 24 V control circuit
- Emergency / manual lowering function
- Anti-slip platform surface with wheel stops
Specifications
| Model | TP-270 |
| Type | Two-post parking lift / car stacker |
| Lifting capacity | 2,700 kg (5,950 lb) |

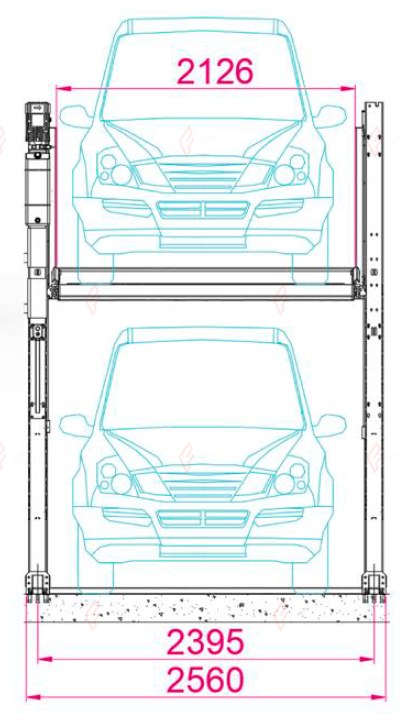

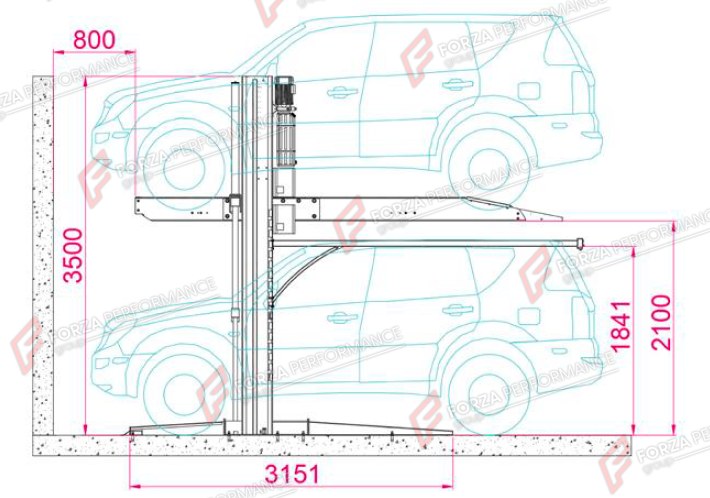

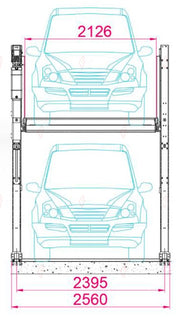

| Max lifting height | up to 2,050 mm (80.7 in) |
| Platform / track spacing | 1,550-2,050 mm (61-81 in) |
| Max vehicle length | up to 5,000 mm (16.4 ft) |
| Motor | hydraulic, 2.2 kW |
| Power supply | single- or three-phase, 50/60 Hz |
| Control voltage | 24 V |
| Lifting time | 45-55 seconds |
| Foundation | C25-C30 concrete, min. 200 mm (7.9 in) slab |
Where it works

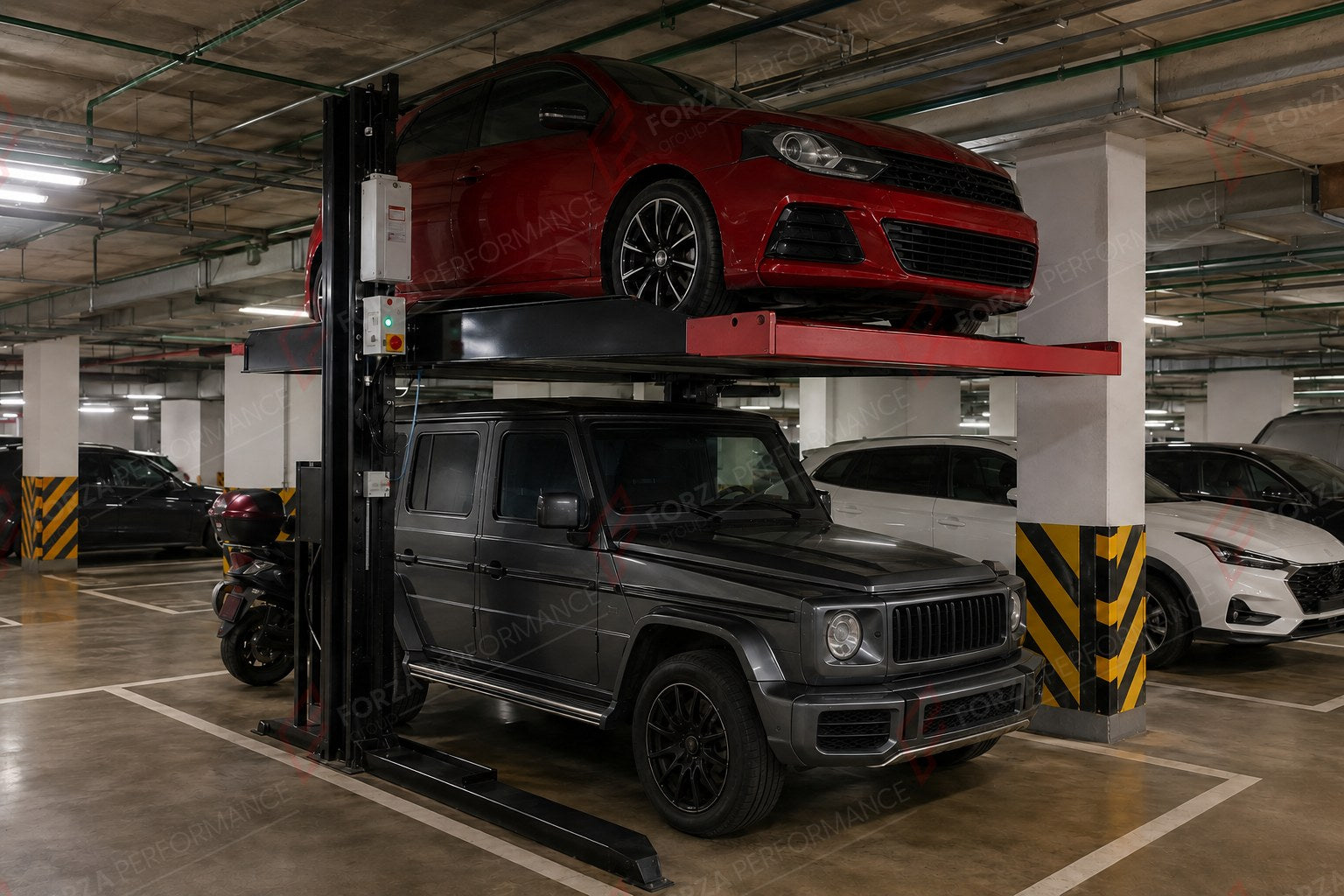

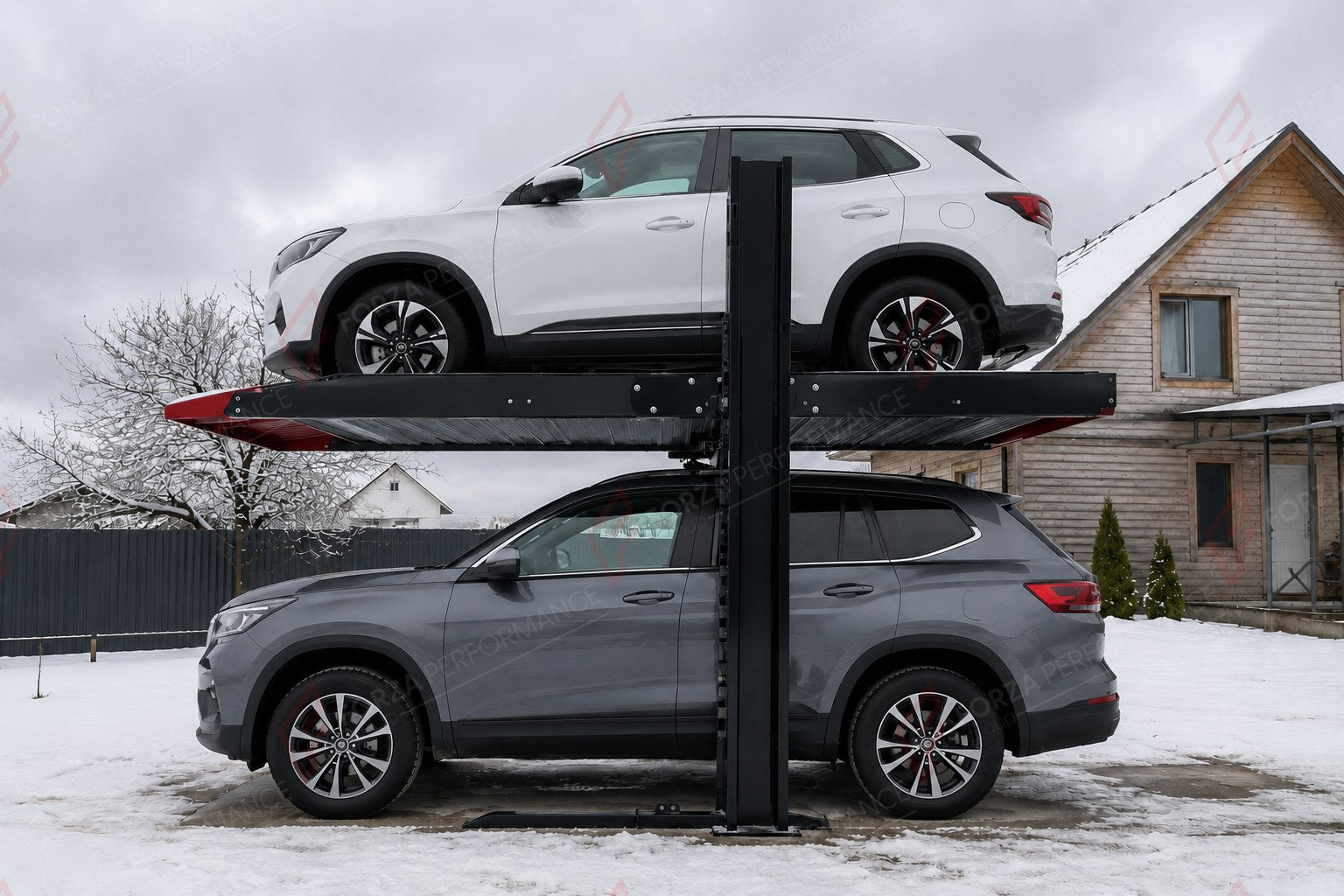

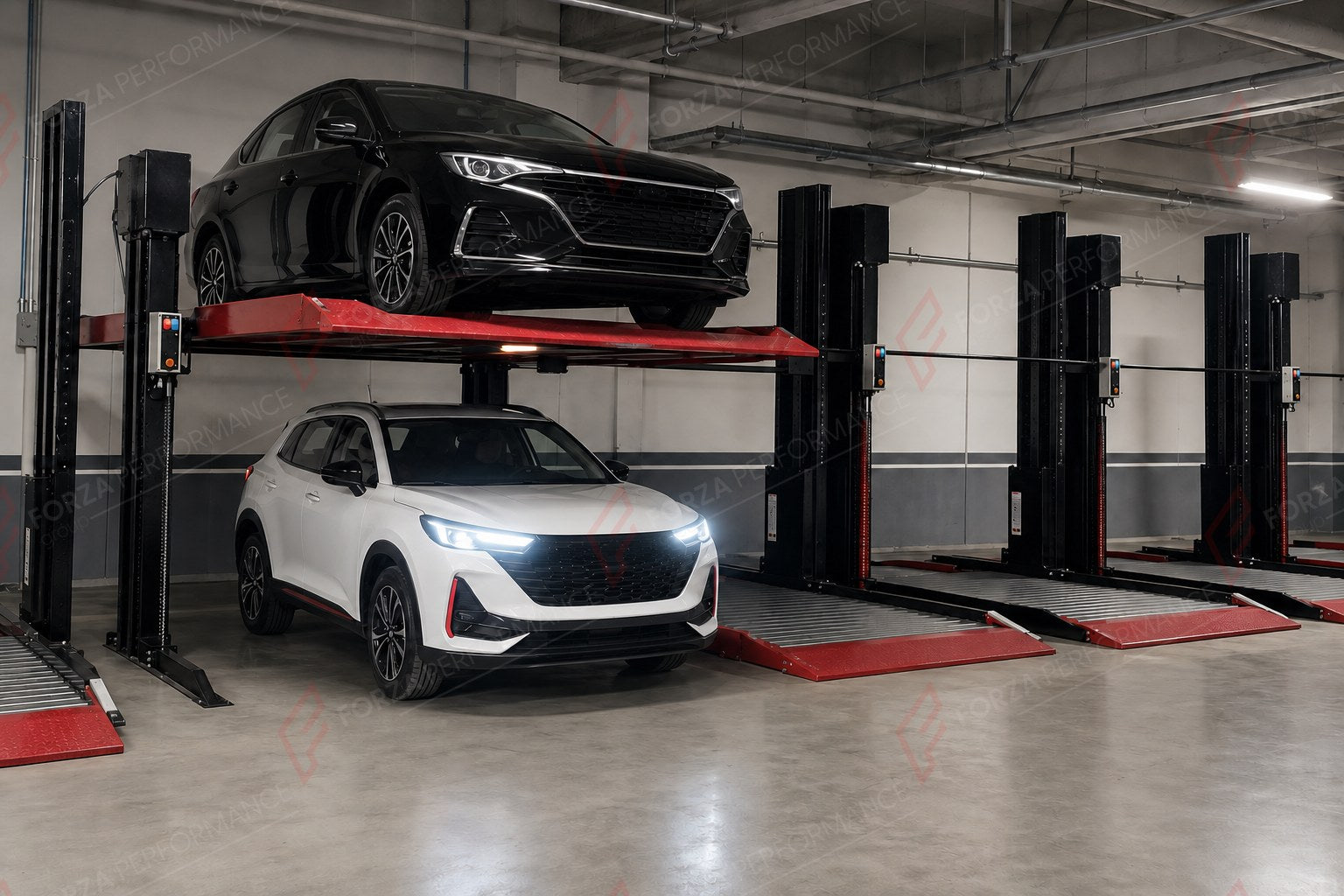

Home garages, private collections, condo parking, dealerships and service shops.
Custom colors, configurations and 220 V single-phase wiring are available on request. Contact Forza Performance Group for a shipping quote and site-specific setup.
