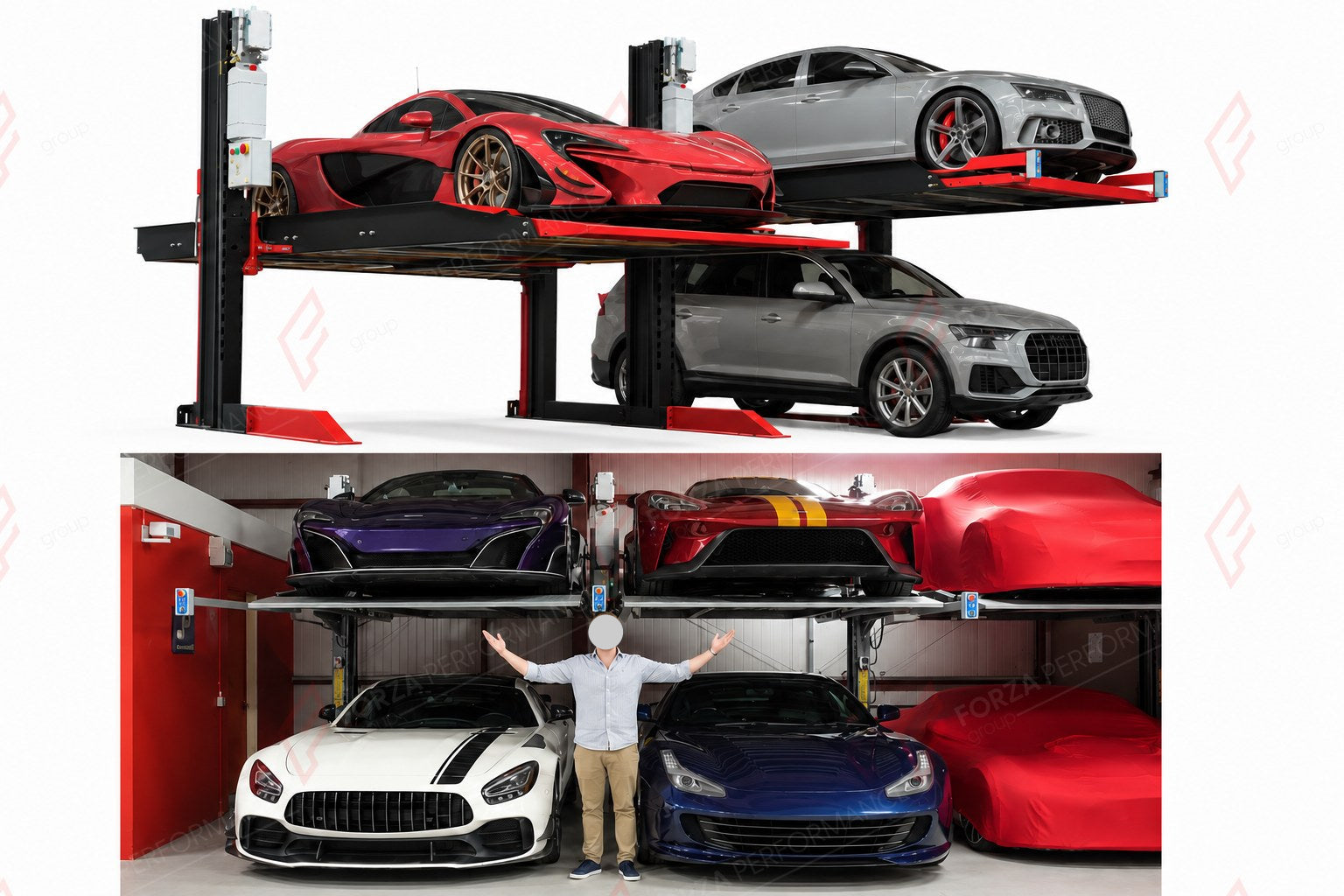

The TP-230H is a hydraulic two-post parking lift - a compact car stacker that doubles a single parking space. The 'H' marks its fully hydraulic drive for smooth, quiet lifting. Rated for 2,300 kg (5,070 lb), it is sized for sedans and smaller crossovers.
Two cars, one space, hydraulic-smooth
A budget-friendly way to add a second parking spot at home with no construction - the hydraulic cylinder and safety locks make daily use effortless.
Built to last
Load-bearing parts are CNC-cut for a precise, repeatable fit and finished with a 100% powder-coat process for lasting corrosion resistance.
Safety first
- Multi-point mechanical anti-fall locks engaged throughout travel
- Hydraulic-lock protection and overload protection valve
- Low-voltage 24 V control circuit
- Emergency / manual lowering function
- Anti-slip platform surface with wheel stops
Specifications
| Model | TP-230H |
| Type | Hydraulic two-post parking lift |
| Lifting capacity | 2,300 kg (5,070 lb) |
| Max lifting height | up to 2,050 mm (80.7 in) |
| Platform / track spacing | 1,500-2,050 mm (59-81 in) |
| Max vehicle length | up to 5,000 mm (16.4 ft) |
| Motor | hydraulic, 2.2 kW |
| Power supply | 50/60 Hz (220 V single-phase available) |
| Control voltage | 24 V |
| Lifting time | 45-55 seconds |
| Foundation | C25-C30 concrete, min. 200 mm (7.9 in) slab |
Where it works
Home garages, condo parking, small dealerships and service shops.
Custom colors, configurations and 220 V single-phase wiring are available on request. Contact Forza Performance Group for a shipping quote and site-specific setup.
