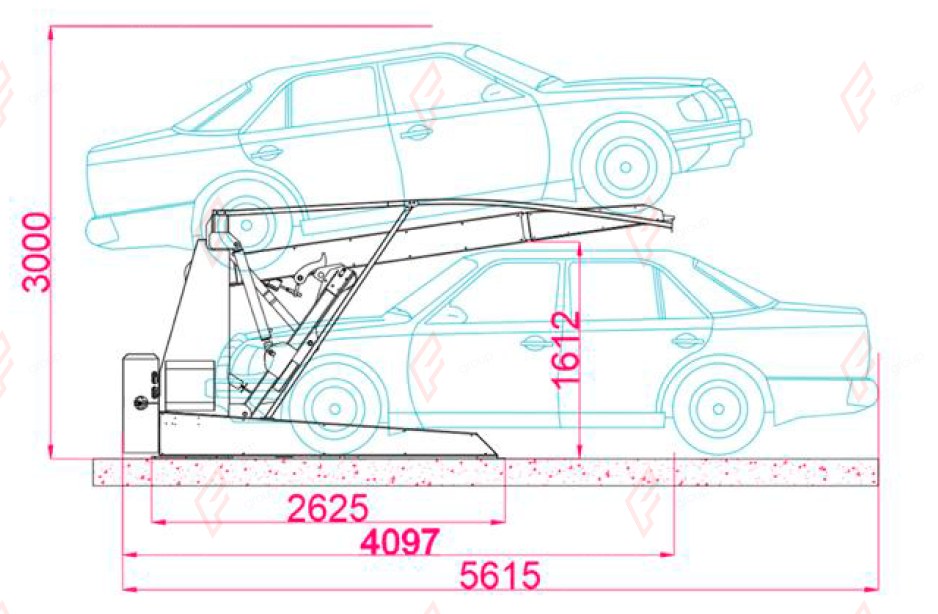

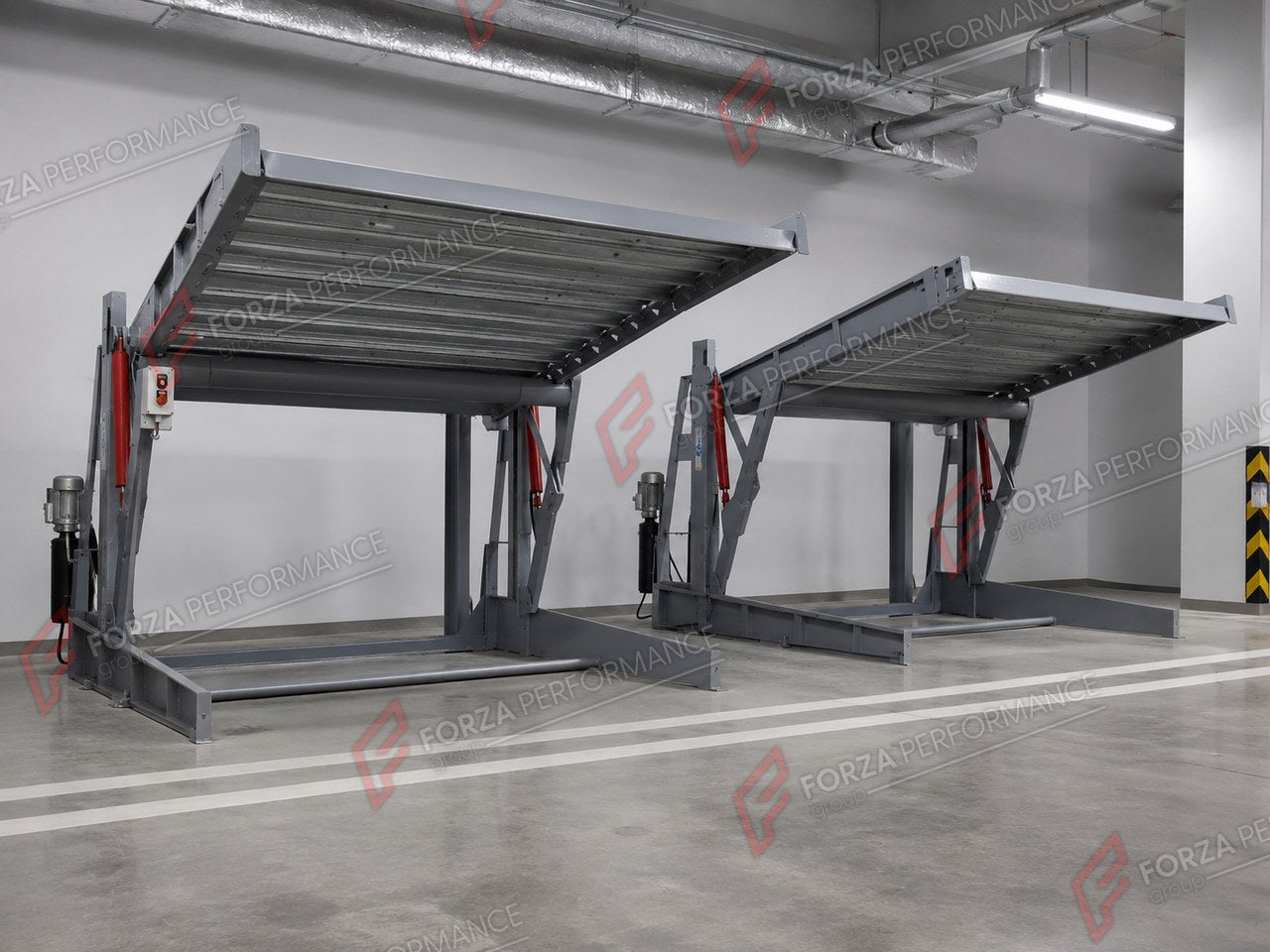

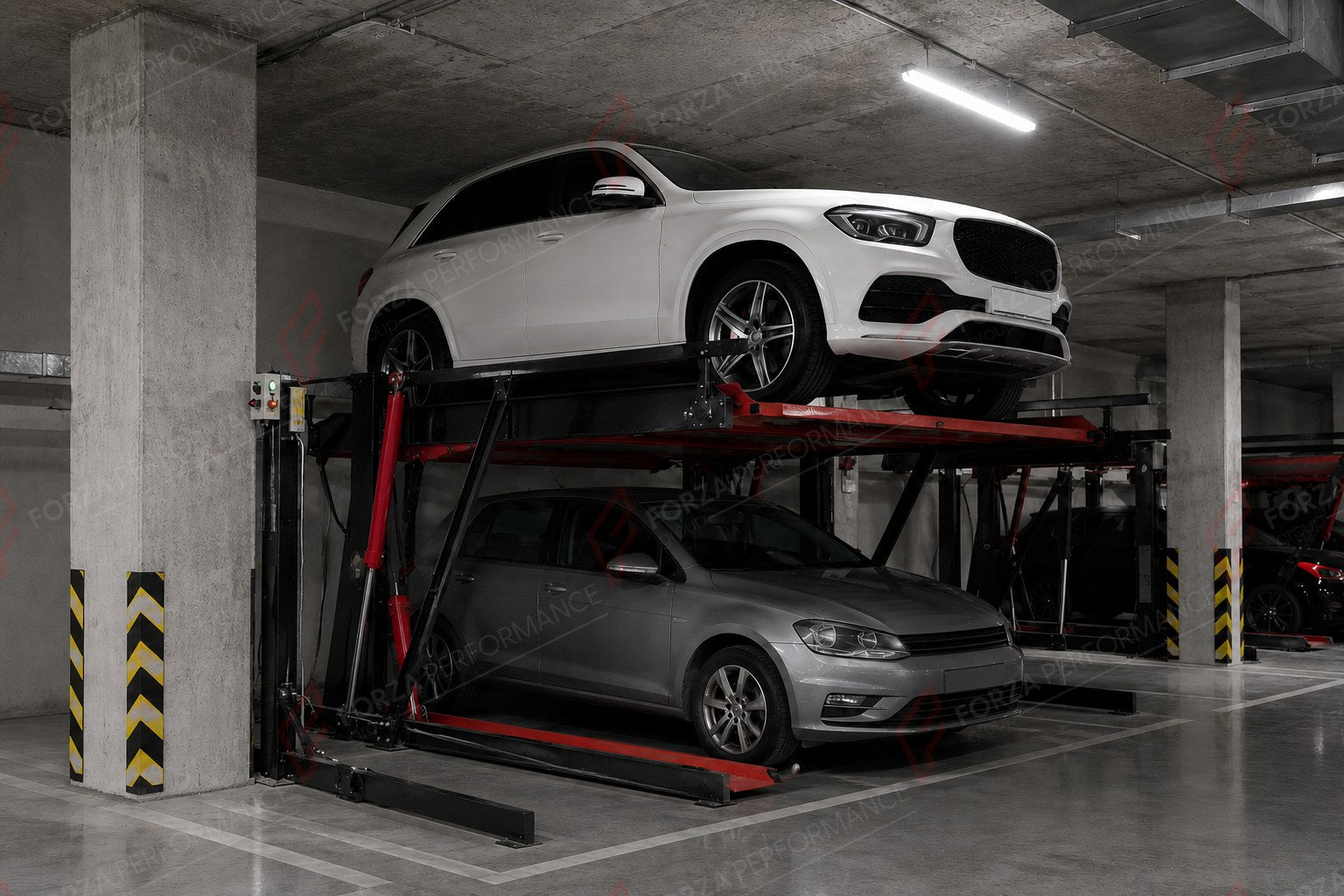

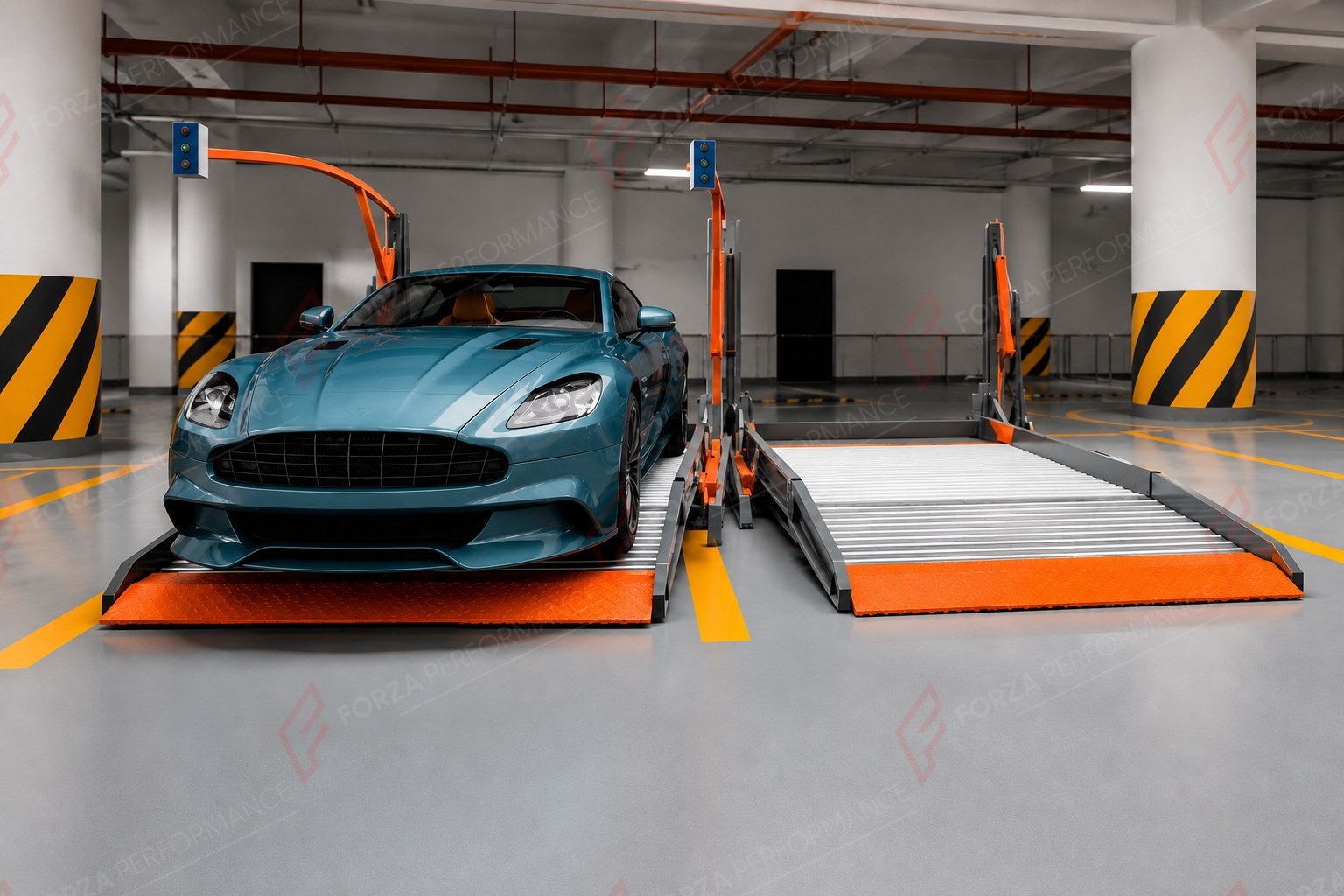

The TP-200 is a tilting two-post parking lift - a space-saving car stacker whose platform tilts as it lifts, so the top car clears low ceilings and the whole unit fits shorter garages. Rated for 2,000 kg (4,410 lb).
Made for low-ceiling garages

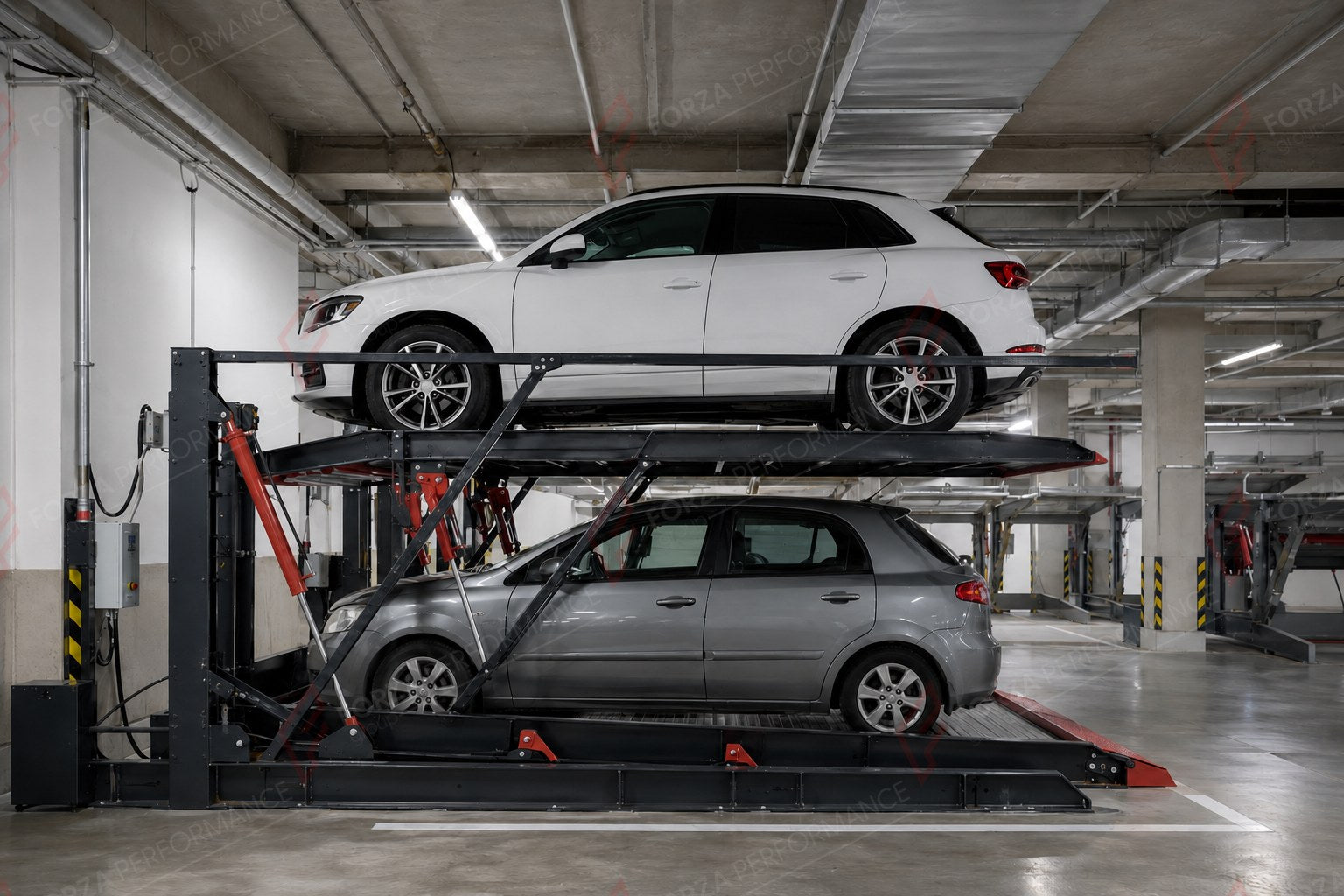

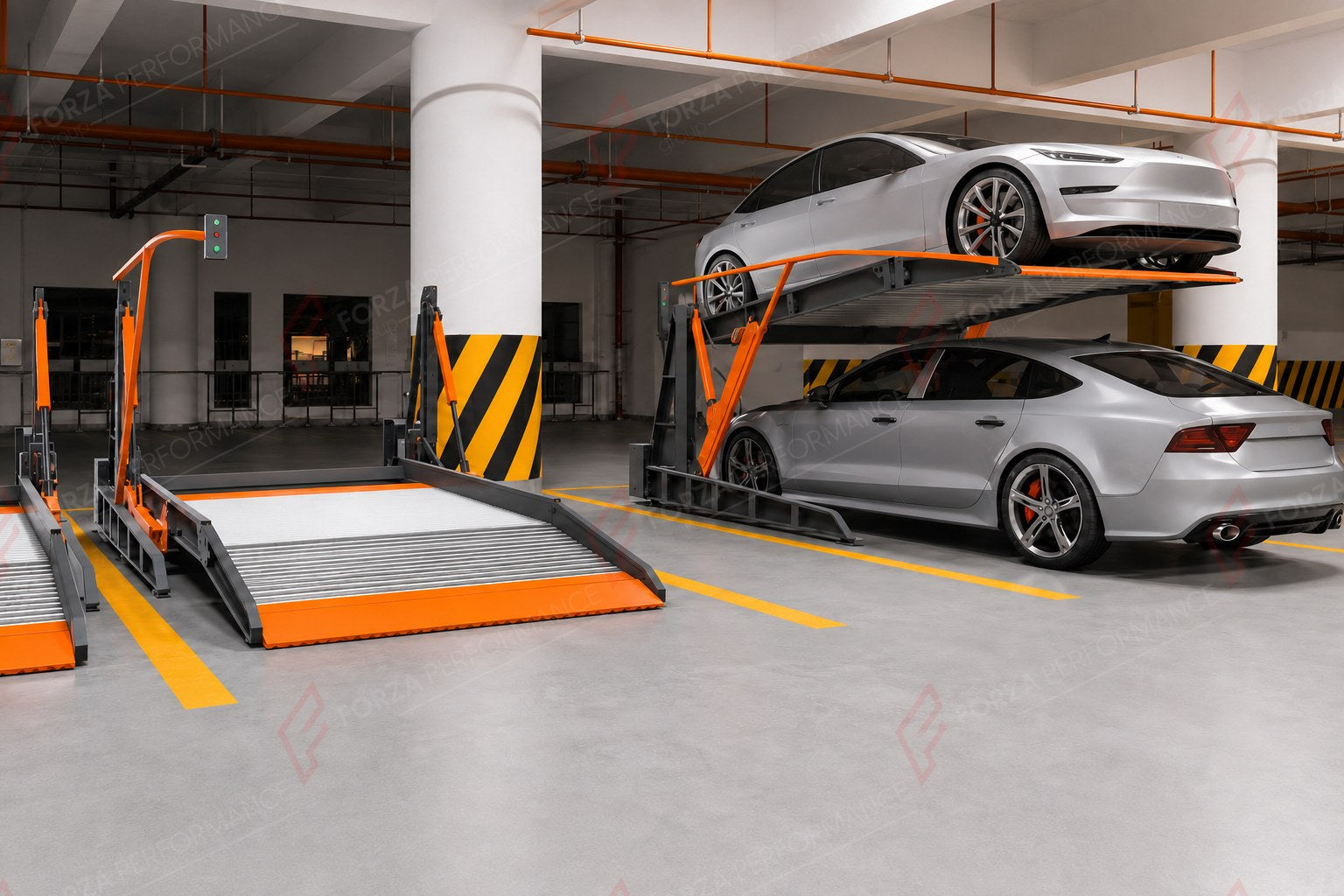

The tilt action lowers the raised vehicle's overall height, letting you stack two cars where a standard lift would not fit - a favorite for residential garages with limited headroom.
Built to last
Load-bearing parts are CNC-cut for a precise, repeatable fit and finished with a 100% powder-coat process for lasting corrosion resistance.
Safety first
- Multi-point mechanical anti-fall locks engaged throughout travel
- Hydraulic-lock protection and overload protection valve
- Low-voltage 24 V control circuit
- Emergency / manual lowering function
- Anti-slip platform surface with wheel stops
Specifications
| Model | TP-200 |
| Type | Tilting two-post parking lift |
| Lifting capacity | 2,000 kg (4,410 lb) |

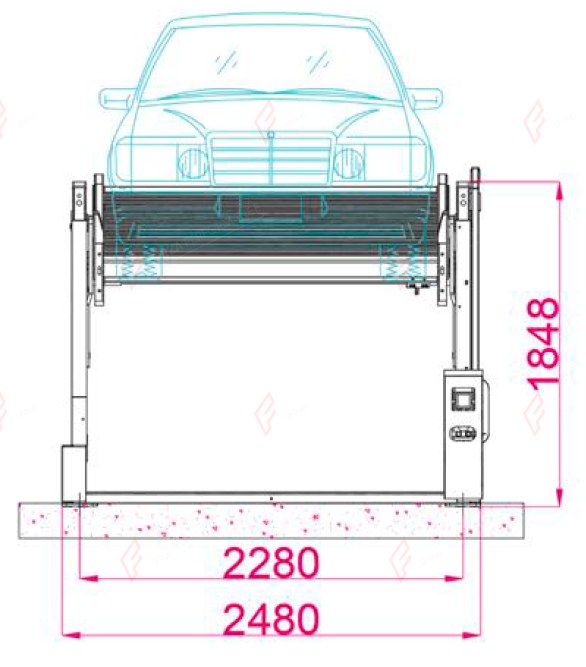

| Max lifting height | up to 1,850 mm (72.8 in) |

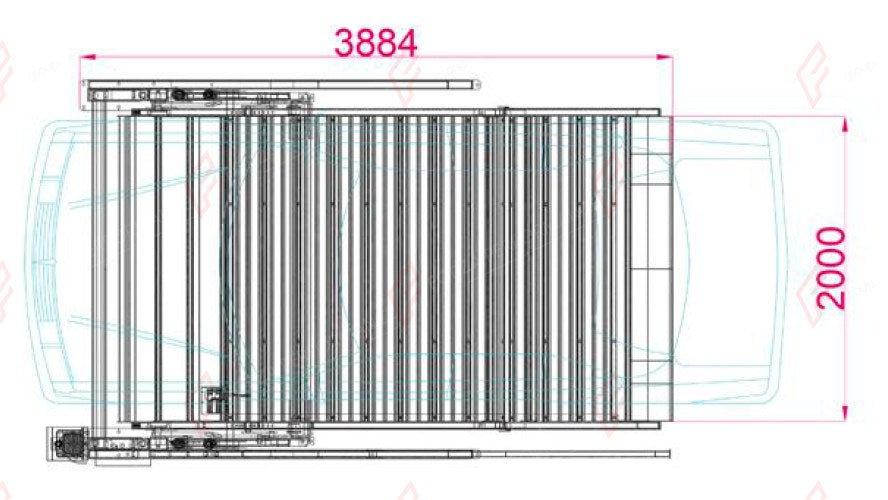

| Platform width options | 1,550 / 1,650 / 1,750 mm |
| Max vehicle length | up to 5,000 mm (16.4 ft) |
| Motor | hydraulic, 2.2 kW |
| Power supply | 50/60 Hz (220 V single-phase available) |
| Control voltage | 24 V |
| Lifting time | 45-55 seconds |
| Foundation | C25-C30 concrete, min. 200 mm (7.9 in) slab |
Where it works

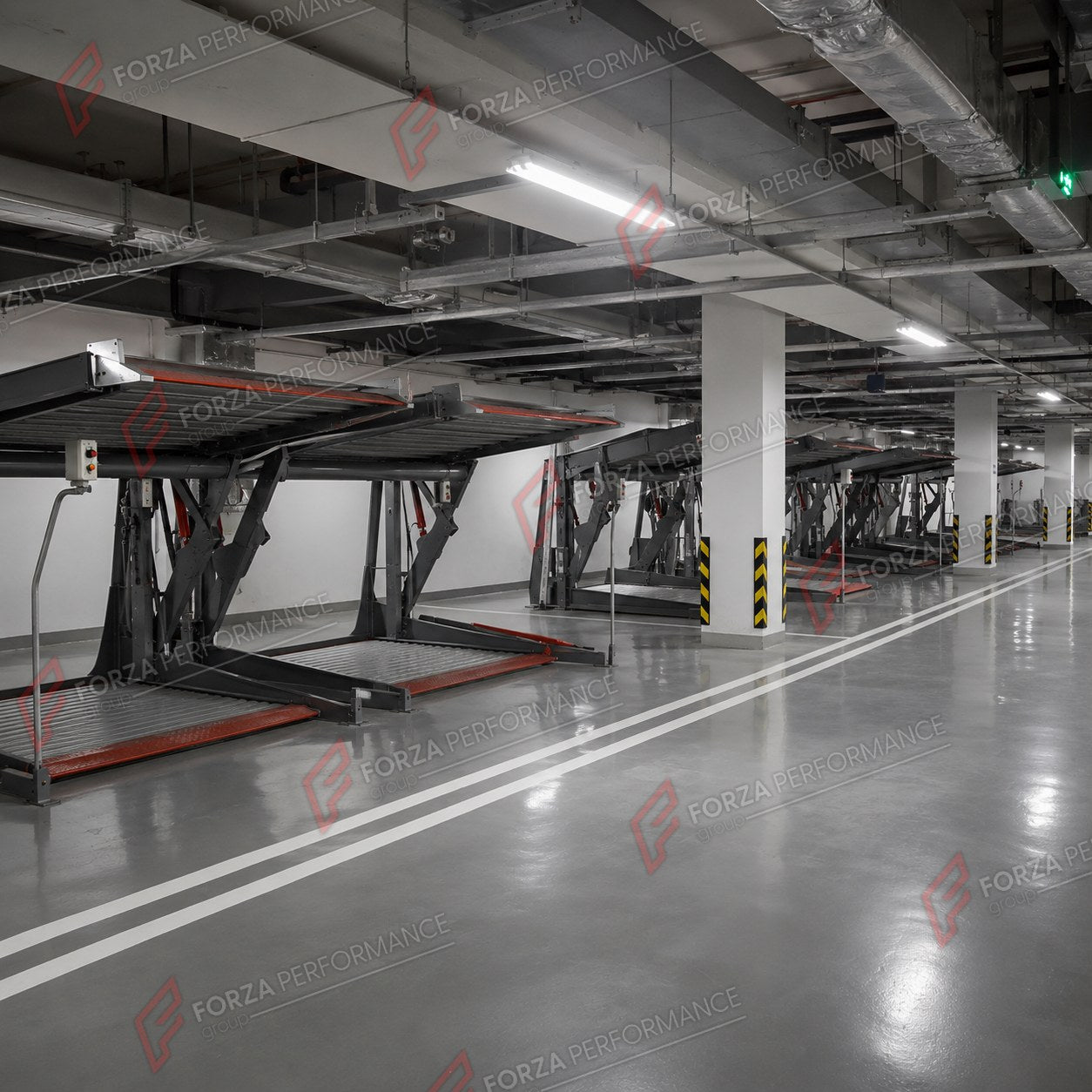

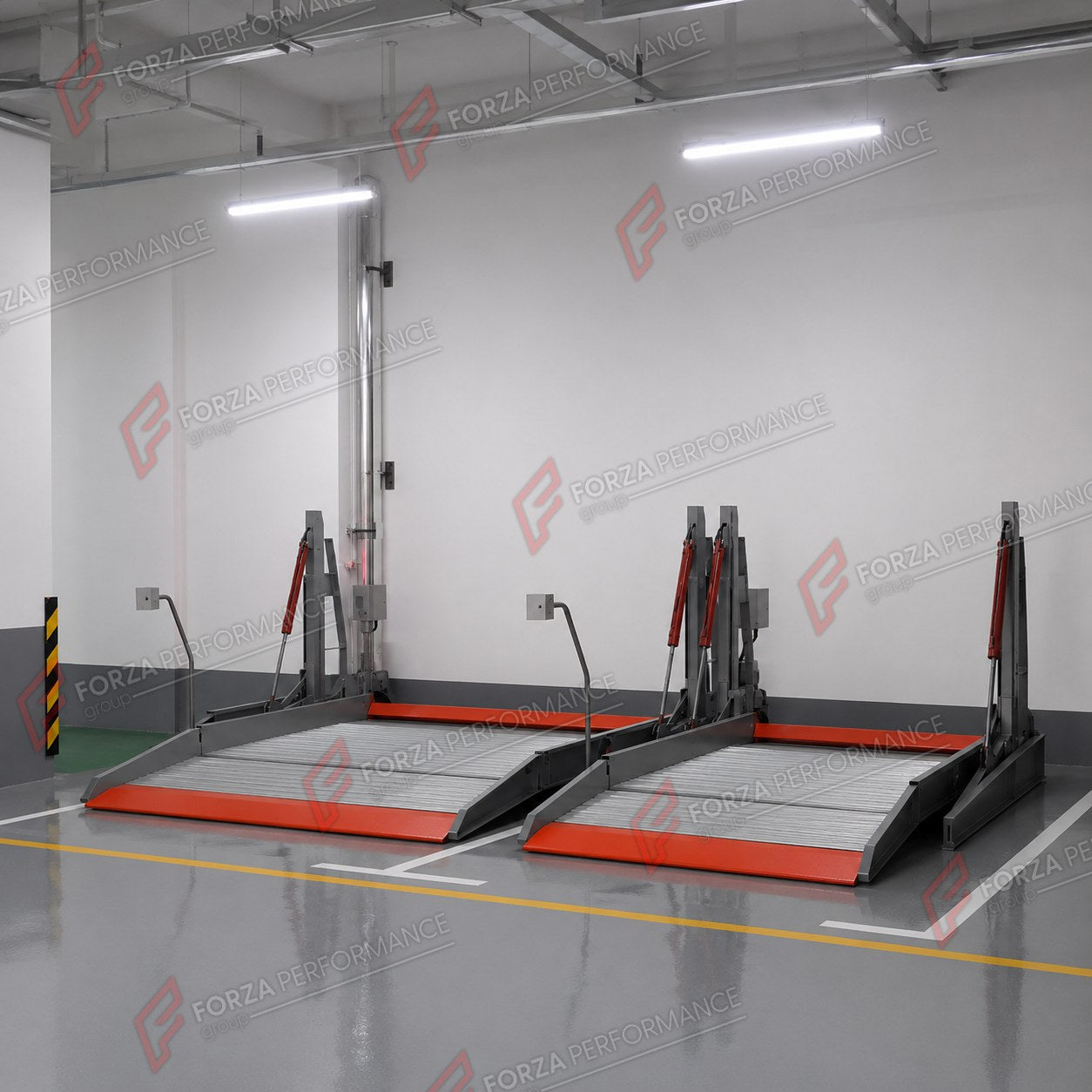

Low-ceiling home garages, basements, condos and showrooms.
Custom colors, configurations and 220 V single-phase wiring are available on request. Contact Forza Performance Group for a shipping quote and site-specific setup.
