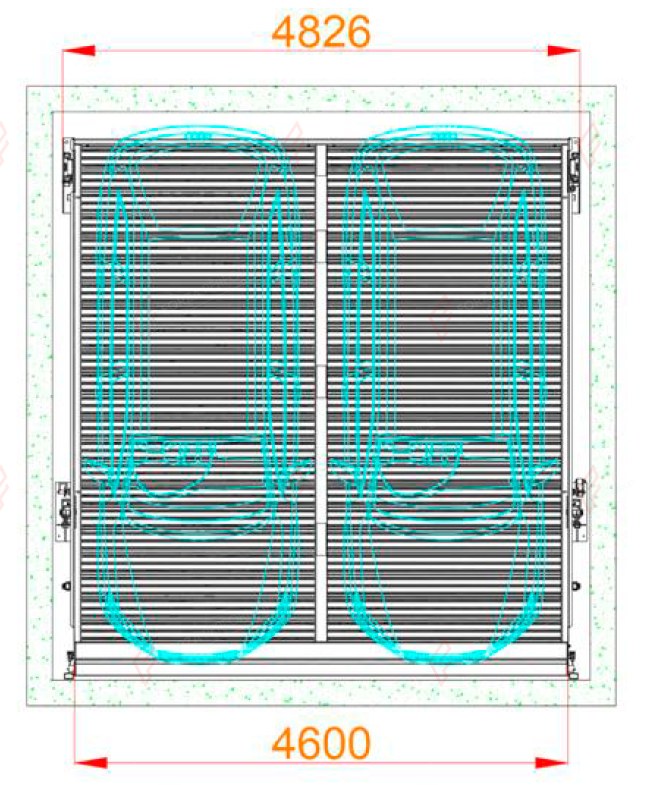

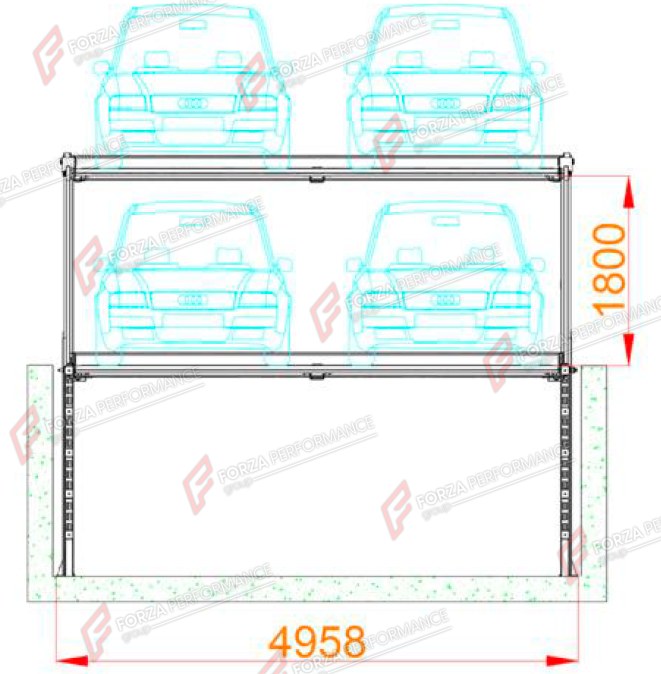

The PTP-4D is a pit-mounted double-wide two-post parking lift - an in-ground system that stores up to four cars, two bays wide, with the upper platforms flush to the floor. Rated up to 2,700 kg (5,950 lb) per space.
Four cars, flush to the floor
Twice the width of the PTP-2, the recessed design keeps overhead clearance minimal while parking four vehicles - built for high-end multi-car garages.
Built to last
Load-bearing parts are CNC-cut for a precise, repeatable fit and finished with a 100% powder-coat process for lasting corrosion resistance.
Safety first
- Multi-point mechanical anti-fall locks engaged throughout travel
- Hydraulic-lock protection and overload protection valve
- Low-voltage 24 V control circuit
- Emergency / manual lowering function
- Anti-slip platform surface with wheel stops
Specifications
| Model | PTP-4D |
| Type | Pit-mounted double two-post parking lift |
| Capacity per space | 2,700 kg (5,950 lb) |
| Max lifting height | up to 1,850 mm (72.8 in) |
| Platform / track spacing | 1,550-2,050 mm (61-81 in) |
| Platform width | up to 2,000 mm |
| Max vehicle length | up to 5,000 mm (16.4 ft) |
| Motor | 7.5 kW |
| Power supply | 50/60 Hz |
| Control voltage | 24 V |
| Lifting time | approx. 50 seconds |
Where it works
High-end multi-car garages and premium residential parking.
Custom colors, configurations and 220 V single-phase wiring are available on request. Contact Forza Performance Group for a shipping quote and site-specific setup.
