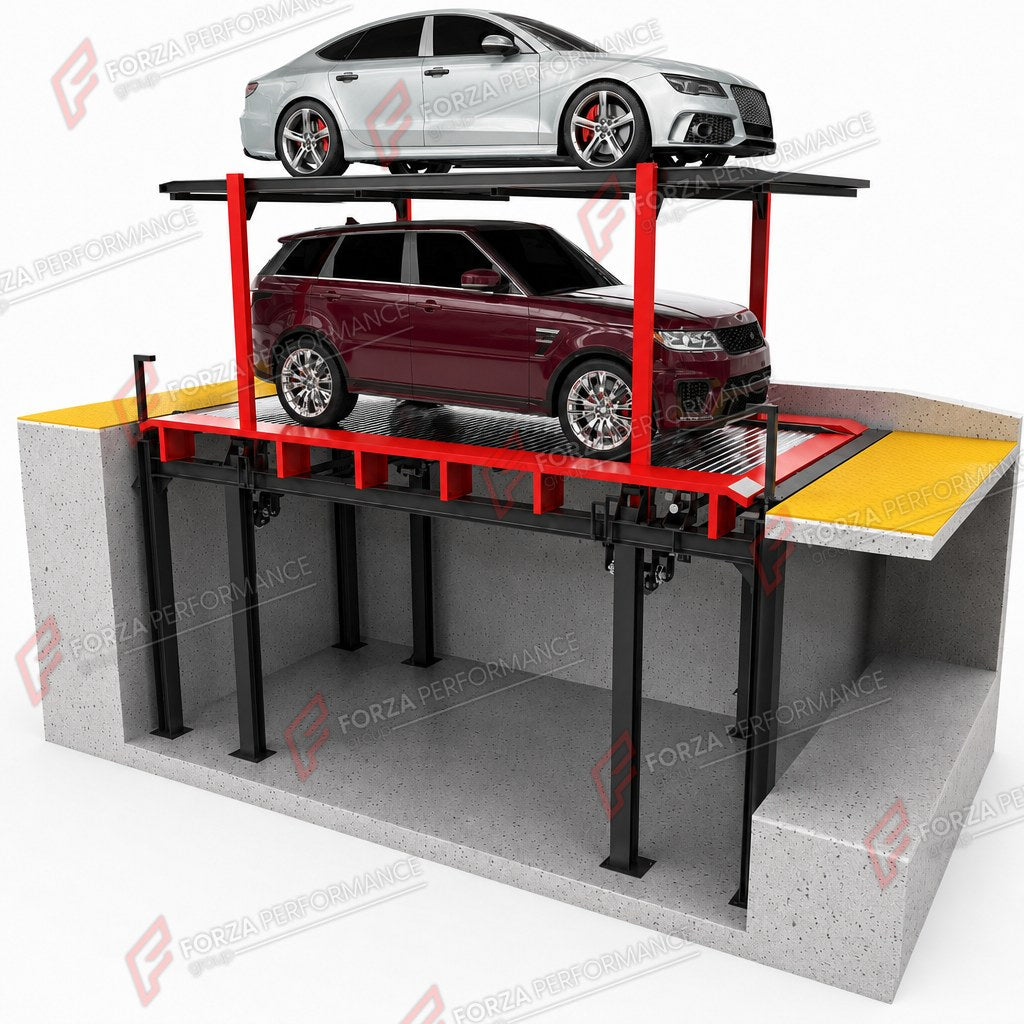

The PTP-2 is a pit-mounted (in-ground) two-post parking lift - the lower car parks in a recessed pit so the upper platform sits flush at floor level for a clean, low-profile look. Rated up to 2,700 kg (5,950 lb).
Flush-floor, in-ground stacking
By sinking the lower bay into a pit, the PTP-2 stacks two cars while keeping ceiling clearance to a minimum - ideal for basements and premium residences.
Built to last
Load-bearing parts are CNC-cut for a precise, repeatable fit and finished with a 100% powder-coat process for lasting corrosion resistance.
Safety first
- Multi-point mechanical anti-fall locks engaged throughout travel
- Hydraulic-lock protection and overload protection valve
- Low-voltage 24 V control circuit
- Emergency / manual lowering function
- Anti-slip platform surface with wheel stops
Specifications
| Model | PTP-2 |
| Type | Pit-mounted two-post parking lift |
| Lifting capacity | 2,000-2,700 kg (4,410-5,950 lb) |
| Max lifting height | up to 1,850 mm (72.8 in) |
| Platform / track spacing | 1,550-2,050 mm (61-81 in) |
| Max vehicle length | up to 5,000 mm (16.4 ft) |
| Motor | 2.2 / 4 / 5.5 / 7.5 kW |
| Power supply | 50/60 Hz |
| Control voltage | 24 V |
| Lifting time | approx. 50 seconds |
Where it works
Basements, premium homes and any garage needing minimal overhead clearance.
Custom colors, configurations and 220 V single-phase wiring are available on request. Contact Forza Performance Group for a shipping quote and site-specific setup.
