PPS Puzzle Parking System - Semi-Automated Multi-Level Car Stacker

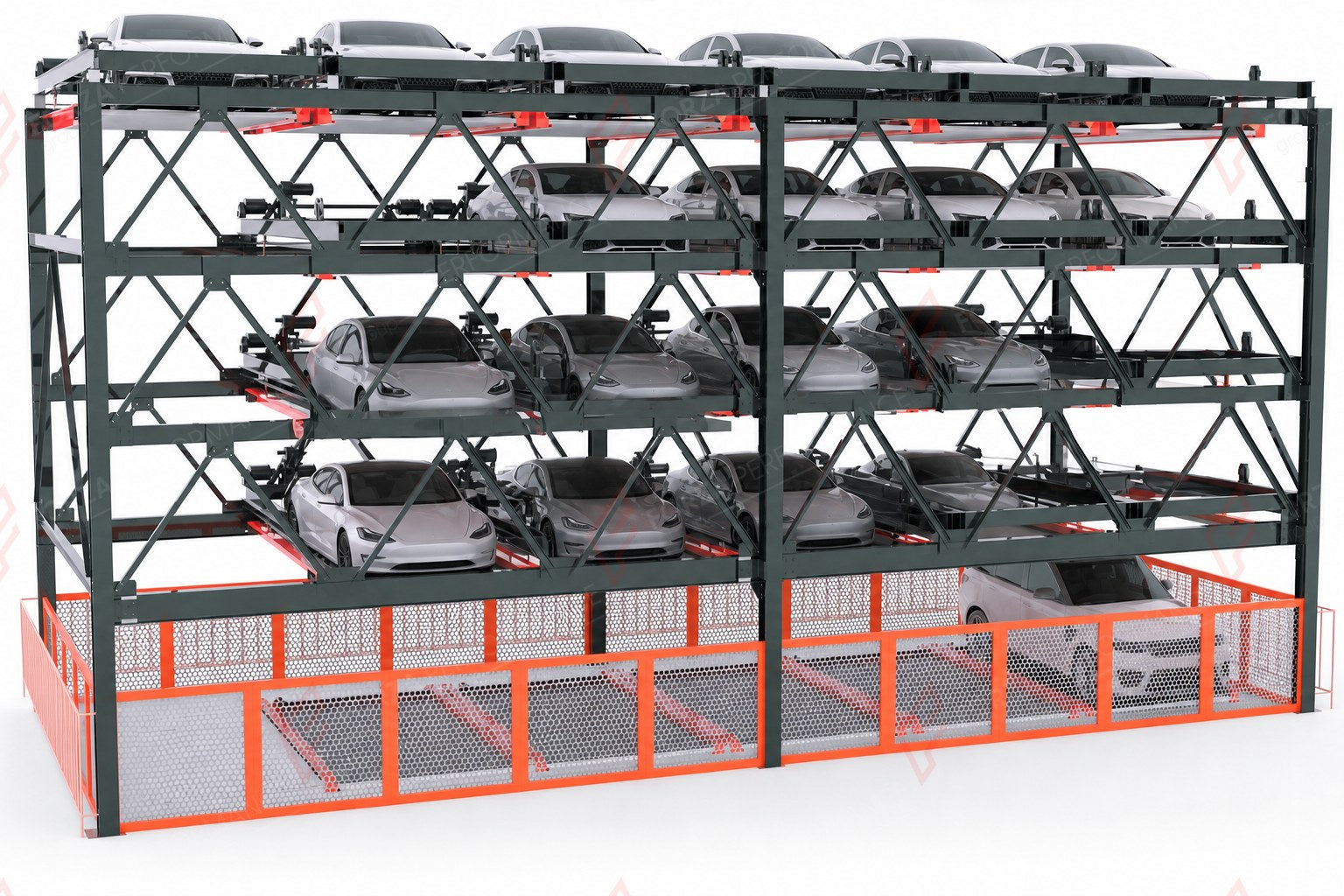

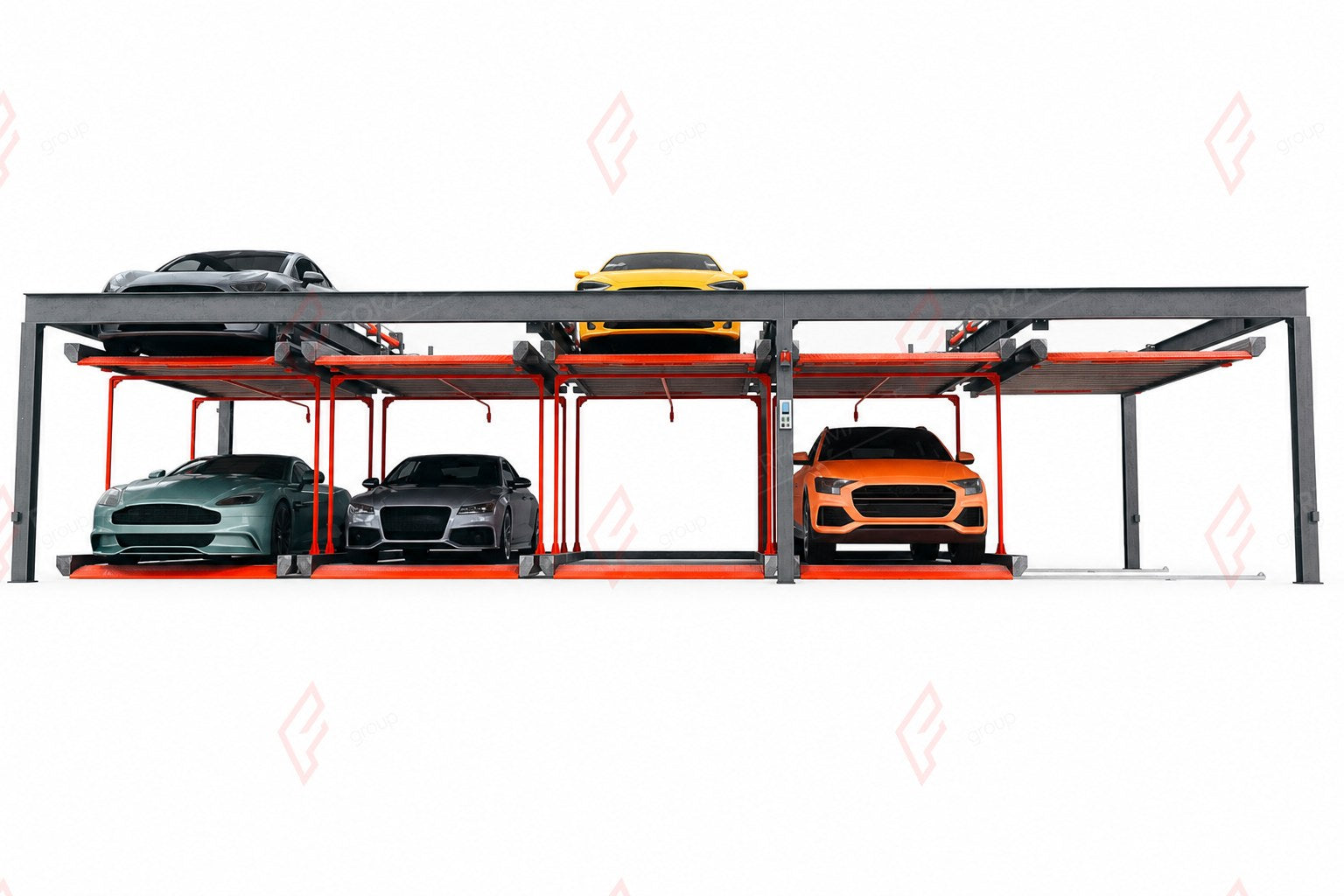

The PPS is a puzzle parking system - a semi-automated, multi-level car stacker that multiplies parking capacity on a fixed footprint. Platforms slide horizontally and vertically like puzzle tiles, so any car can be brought down to ground level at the touch of a button, with no ramps and no attendant driving between decks.

Turn one lot into many

Configurable from two to six-plus levels (the PPS-2 through PPS-6 range), a puzzle system can 2x-6x the number of vehicles you fit in the same area. It's the standard solution for apartment and condo buildings, hotels, offices, and commercial lots where land is scarce and every space counts.

Built to last

Heavy structural-steel frames, CNC-fabricated pallets, and a 100% powder-coat finish stand up to daily commercial cycling. Chain-and-sprocket lifting with independent drive motors keeps each pallet precisely positioned.

Safety first

• Mechanical safety locks and anti-drop devices on every pallet
• Photo-electric sensors and vehicle-position detection
• Low-voltage 24 V control with PLC operation
• Overload protection and emergency stop
• Optional card / app access control

Specifications

Where it works

Residential buildings, mixed-use developments, hotels, offices, and any commercial lot that needs more parking without more land.

Every puzzle system is engineered to your site. Contact Forza Performance Group with your dimensions and vehicle count for a layout, capacity plan, and quote.
