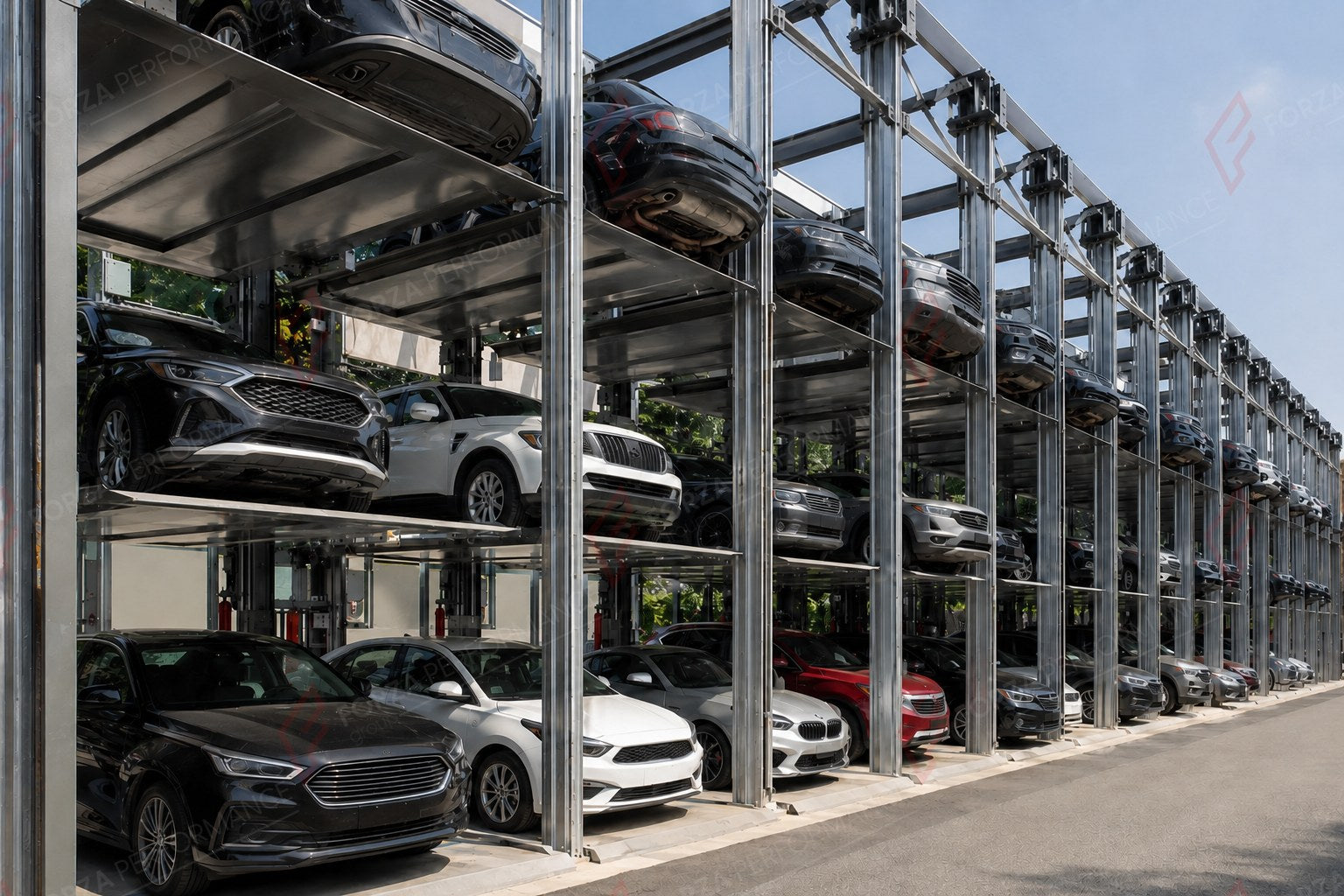

The MPS-3/4/5 is a multi-level parking stacker - a commercial-grade system available in three, four or five tiers that multiplies parking on a fixed footprint. Each space carries up to 3,000 kg (6,610 lb).
Stack 3, 4 or 5 high
Independent or dependent lifting lets you scale capacity to the site - the go-to for dealerships, fleets and dense residential or commercial parking.
Built to last
Heavy structural-steel frames, CNC-fabricated pallets and a 100% powder-coat finish stand up to daily commercial cycling, with PLC control and independent drive motors.
Safety first
- Mechanical safety locks and anti-drop devices on every pallet
- Photo-electric sensors and vehicle-position detection
- Low-voltage 24 V PLC control
- Overload protection and emergency stop
- Optional card / app access control
Specifications
| Model range | MPS-3 / MPS-4 / MPS-5 |
| Type | Multi-level parking stacker (3-5 tiers) |
| Capacity per space | 3,000 kg (6,610 lb) |
| Total height | up to 5,500 mm (18 ft) |
| Platform width | 1,550 / 2,050 mm |
| Lifting range | 2,000-3,000 mm |
| Motor | 5.5-7.5 kW |
| Power supply | three-phase, 50/60 Hz |
| Control voltage | 24 V |
| Foundation | C25-C30 concrete, min. 300 mm slab |
Where it works
Dealerships, fleets and dense residential or commercial parking.
Custom colors, configurations and 220 V single-phase wiring are available on request. Contact Forza Performance Group for a shipping quote and site-specific setup.
