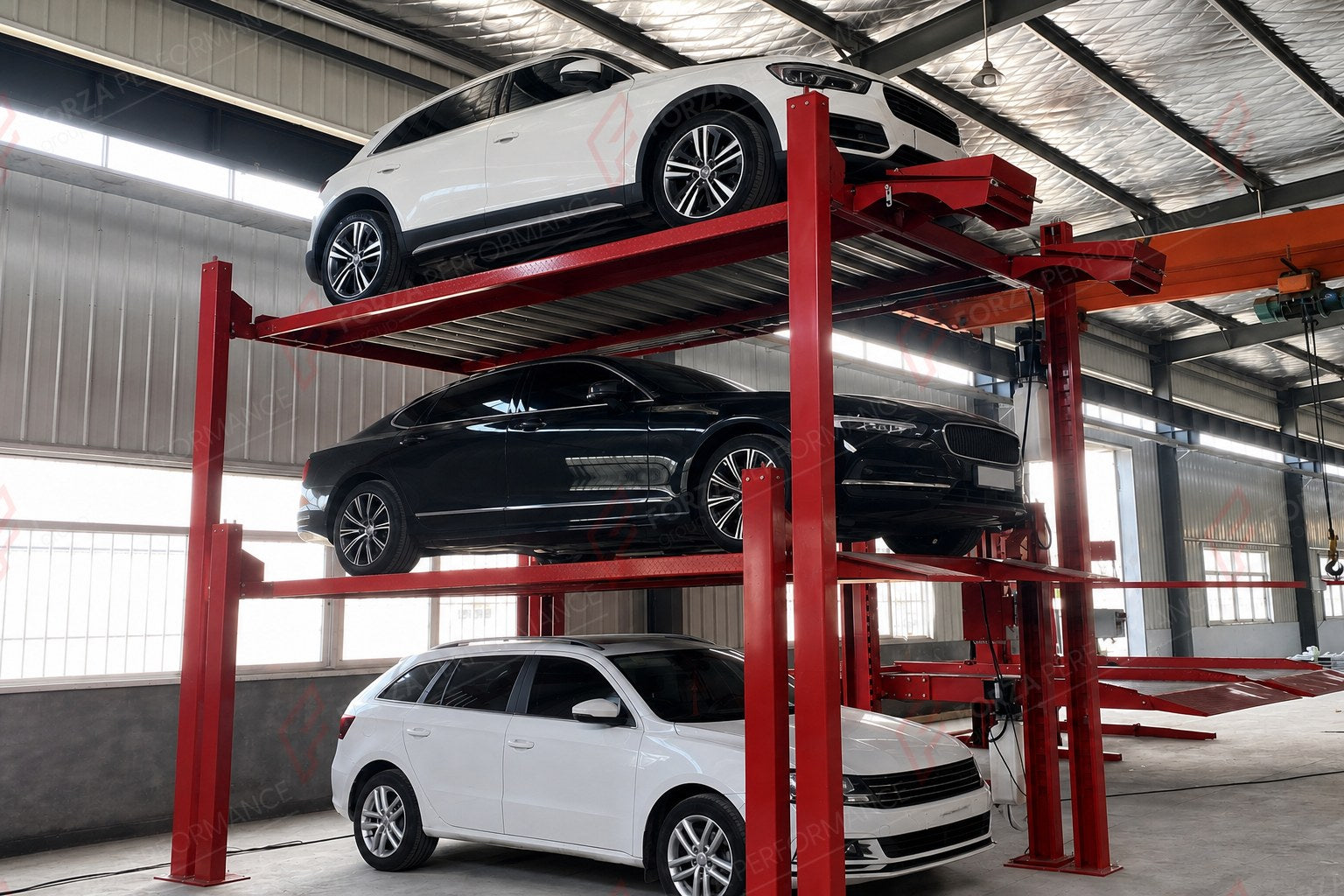

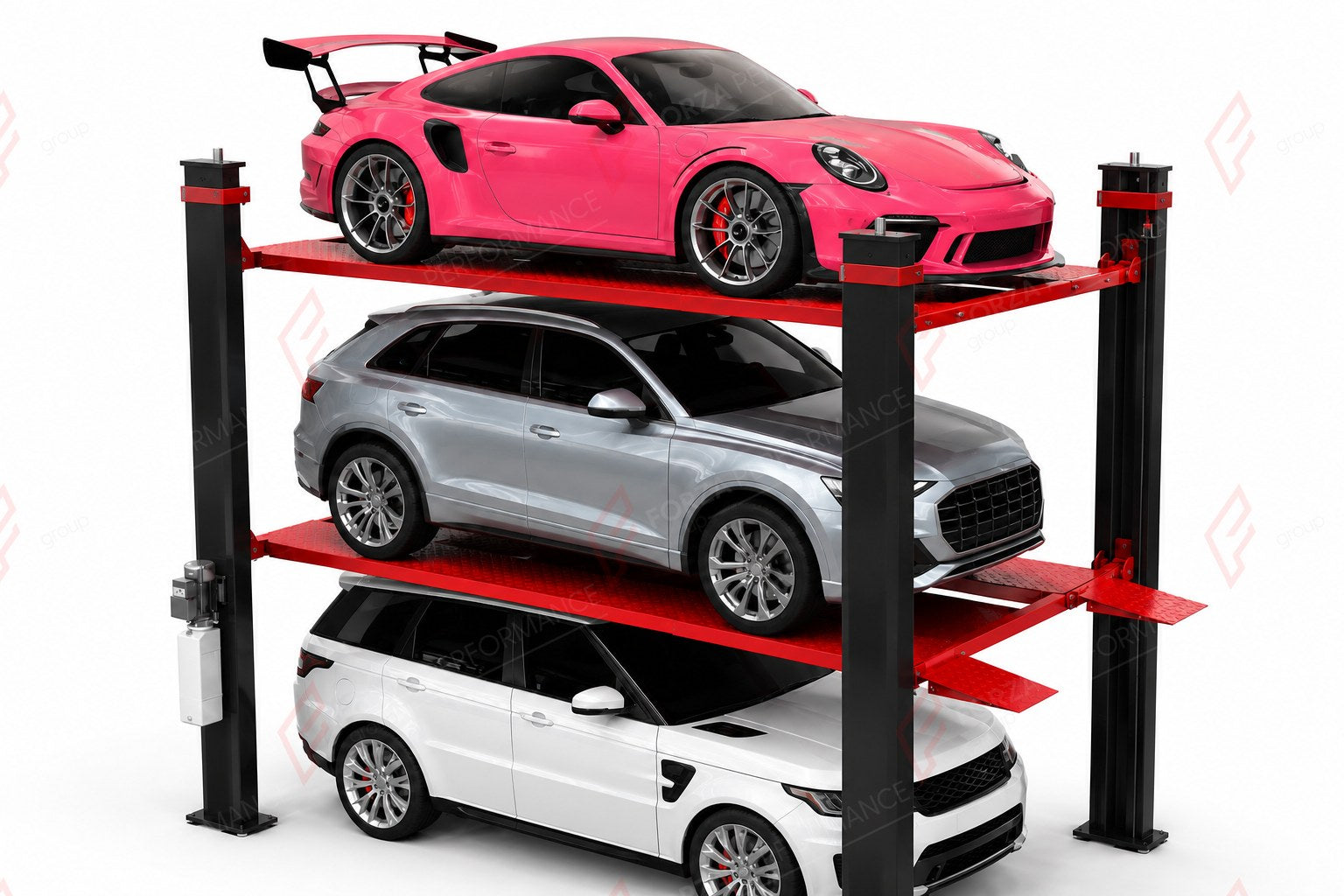

The FP-360X is an extended four-post parking lift - a wide drive-on storage lift that parks up to three cars across on a single structure. Rated for 2,500 kg (5,510 lb) per space.
Three cars across, one structure

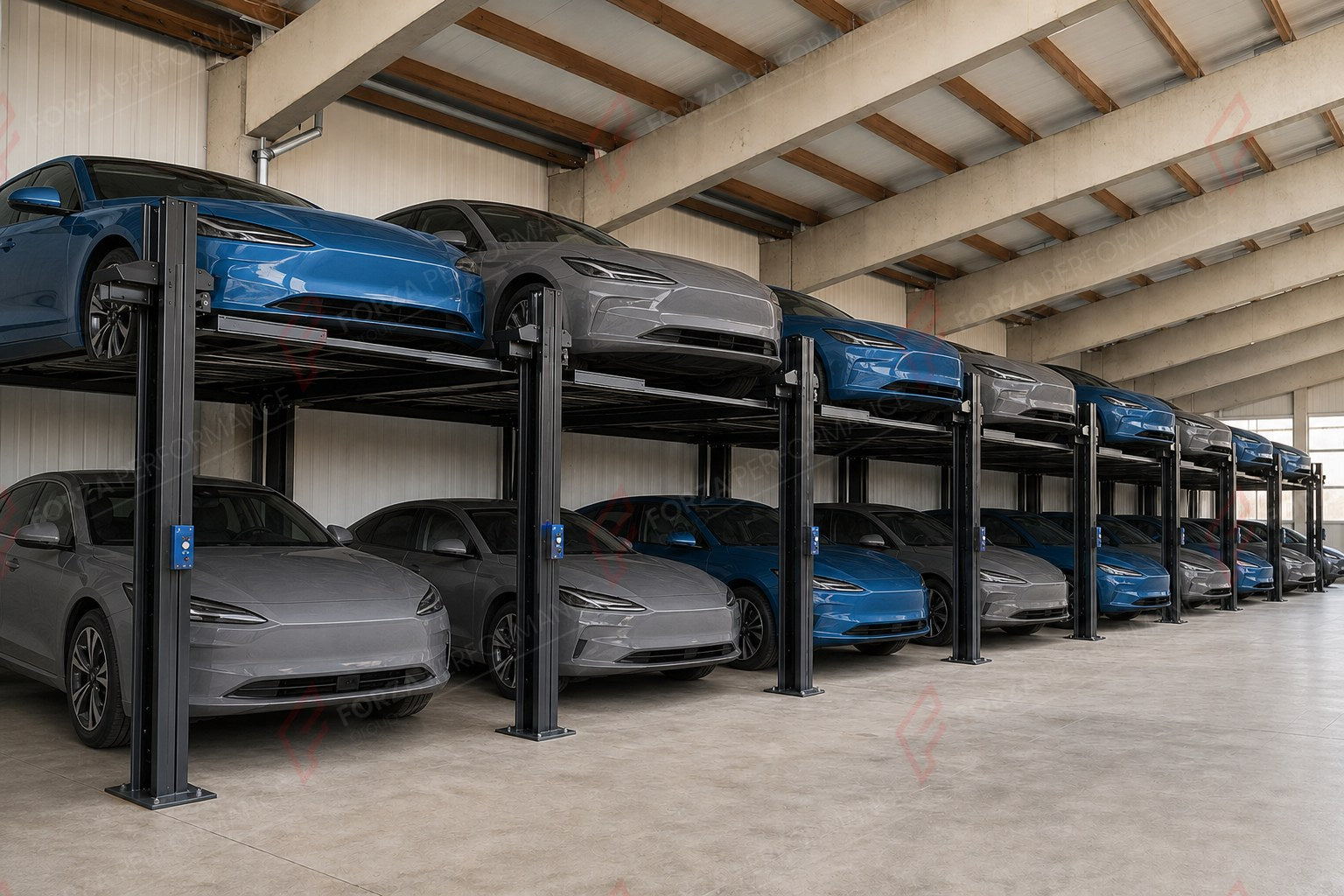

The extra-wide FP-360X makes the most of a broad footprint, storing three vehicles up top with three below - built for showrooms, dealerships and large private garages.
Built to last
Load-bearing parts are CNC-cut for a precise, repeatable fit and finished with a 100% powder-coat process for lasting corrosion resistance.
Safety first
- Multi-point mechanical anti-fall locks engaged throughout travel
- Hydraulic-lock protection and overload protection valve
- Low-voltage 24 V control circuit
- Emergency / manual lowering function
- Anti-slip platform surface with wheel stops

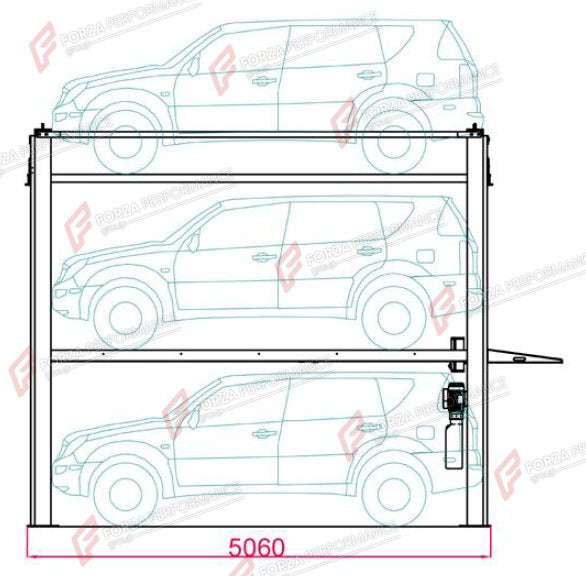

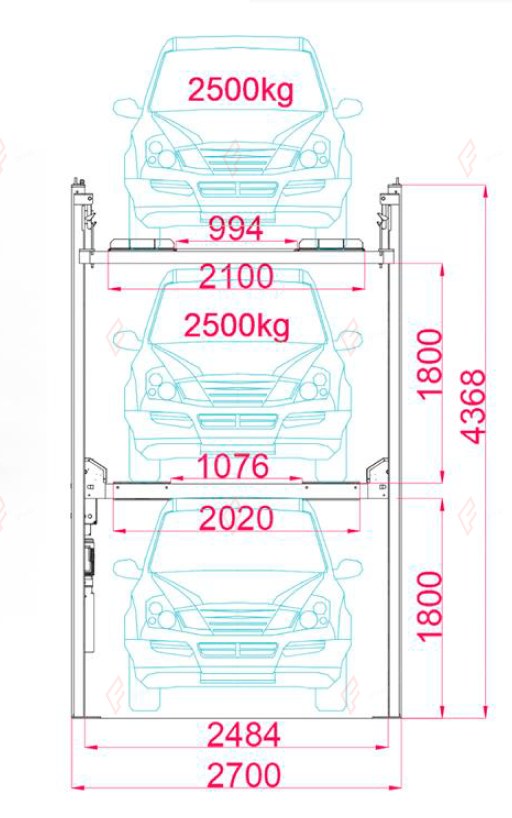

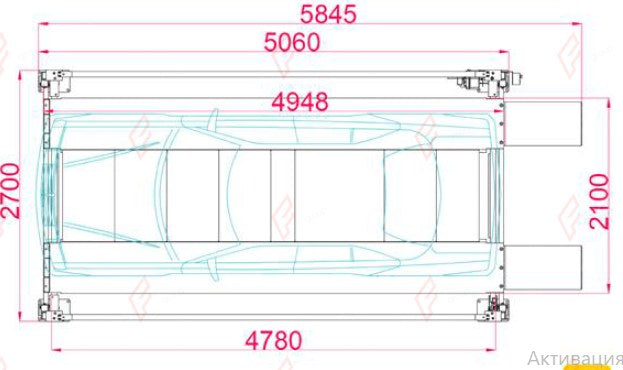

Specifications
| Model | FP-360X |
| Type | Four-post extended (triple-width) storage lift |
| Capacity per space | 2,500 kg (5,510 lb) |
| Max lifting height | up to 2,050 mm (80.7 in) |
| Max vehicle length | up to 5,100 mm (16.7 ft) |
| Track width | 1,550-2,050 mm (61-81 in) |
| Motor | hydraulic, 3.0 kW |
| Power supply | 50/60 Hz |
| Control voltage | 24 V |
| Lifting time | approx. 55 seconds |
| Foundation | C25-C30 concrete, min. 300 mm slab |
Where it works

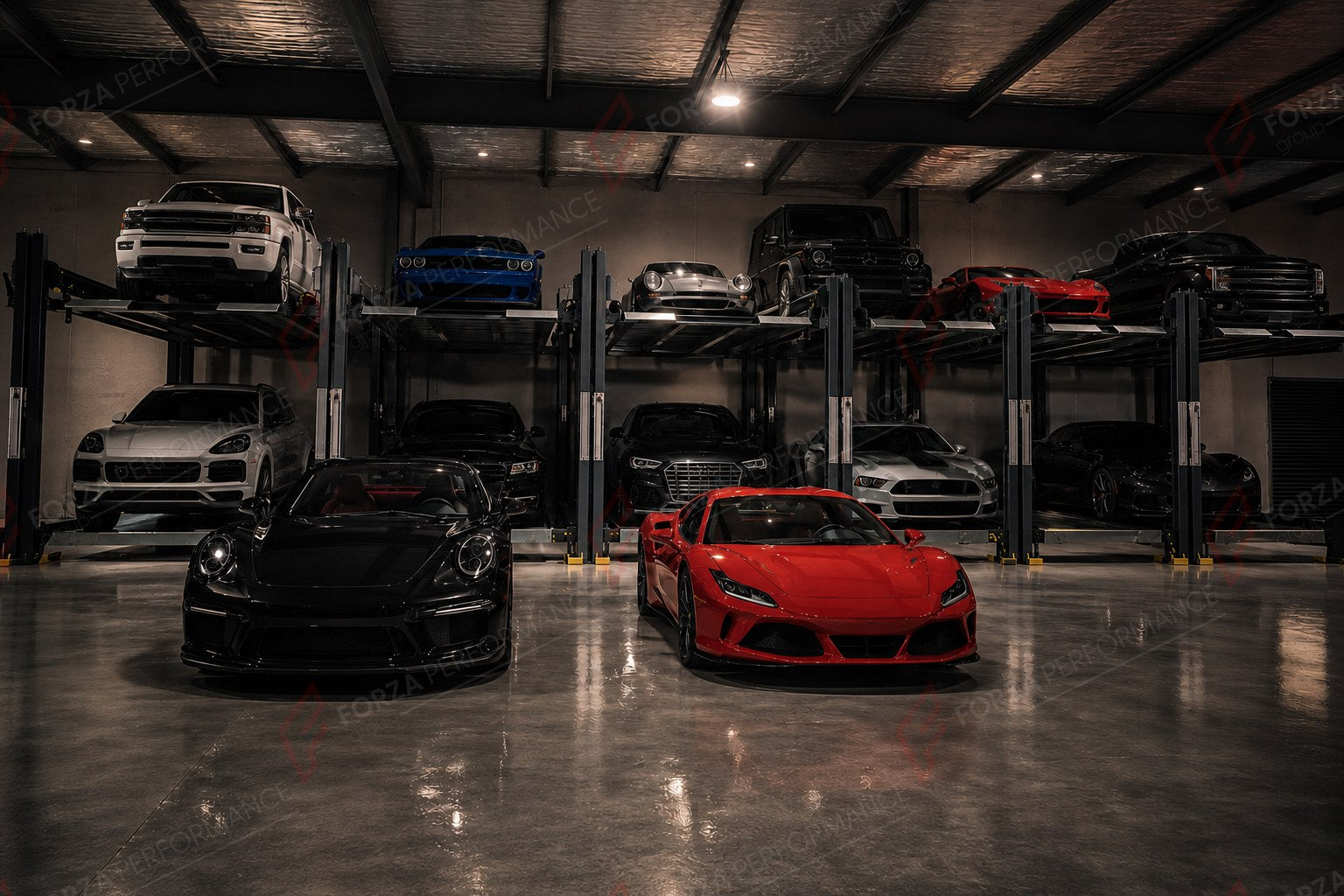

Showrooms, dealerships and large private garages.
Custom colors, configurations and 220 V single-phase wiring are available on request. Contact Forza Performance Group for a shipping quote and site-specific setup.
