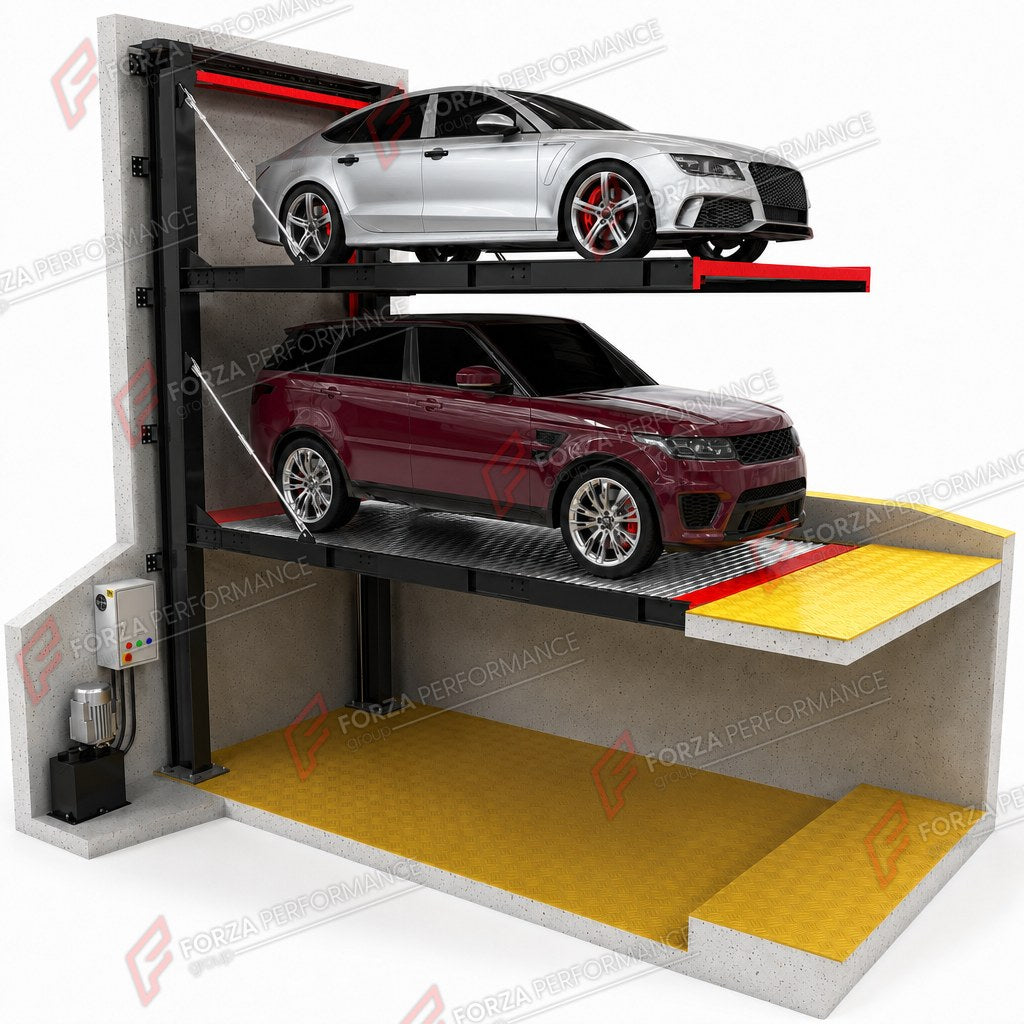

The CPS-2 is a cantilever pit parking system - an in-ground lift with no front posts, so you drive straight on with nothing in the way. The lower car sits in a recessed pit for a flush, clean finish. Rated up to 2,100 kg (4,630 lb).
No posts, nothing in the way
The cantilever design removes the front columns entirely for the easiest loading of any stacker, combined with the low-profile look of an in-ground pit.
Built to last
Load-bearing parts are CNC-cut for a precise, repeatable fit and finished with a 100% powder-coat process for lasting corrosion resistance.
Safety first
- Multi-point mechanical anti-fall locks engaged throughout travel
- Hydraulic-lock protection and overload protection valve
- Low-voltage 24 V control circuit
- Emergency / manual lowering function
- Anti-slip platform surface with wheel stops

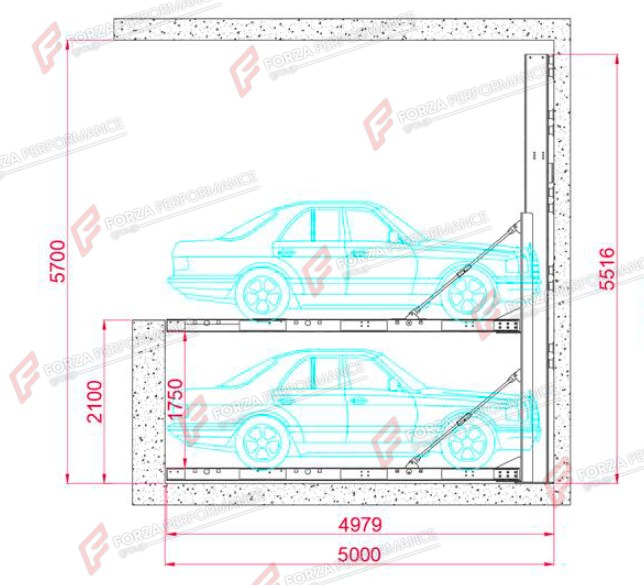

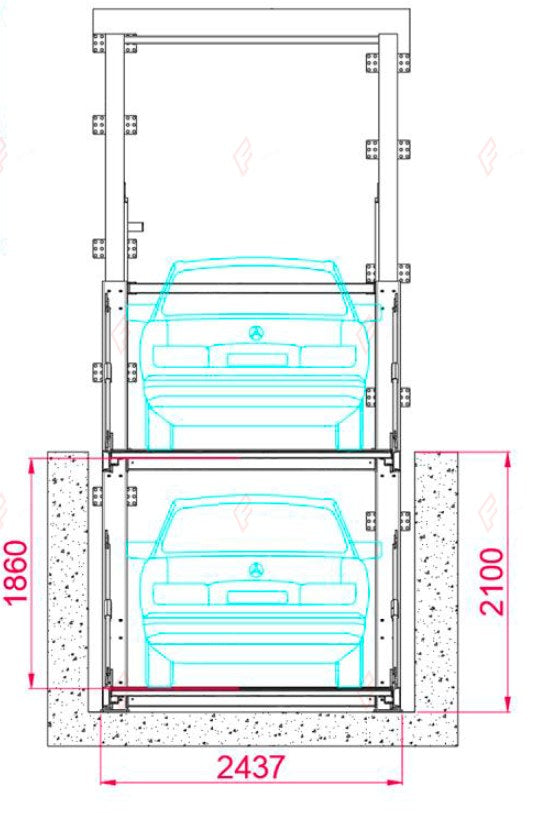

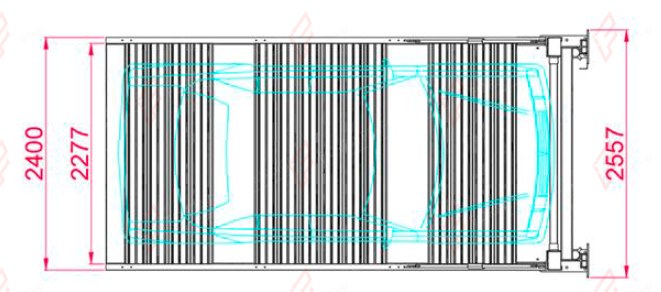

Specifications
| Model | CPS-2 |
| Type | Cantilever pit parking system |
| Lifting capacity | 2,000-2,100 kg (4,410-4,630 lb) |
| Max lifting height | up to 1,850 mm (72.8 in) |
| Platform / track spacing | 1,550-2,050 mm (61-81 in) |
| Max vehicle length | up to 5,000 mm (16.4 ft) |
| Motor | 4 / 5.5 / 7.5 kW |
| Power supply | 50/60 Hz |
| Control voltage | 24 V |
Where it works
Premium garages and showrooms that want post-free, easy-load stacking.
Custom colors, configurations and 220 V single-phase wiring are available on request. Contact Forza Performance Group for a shipping quote and site-specific setup.
