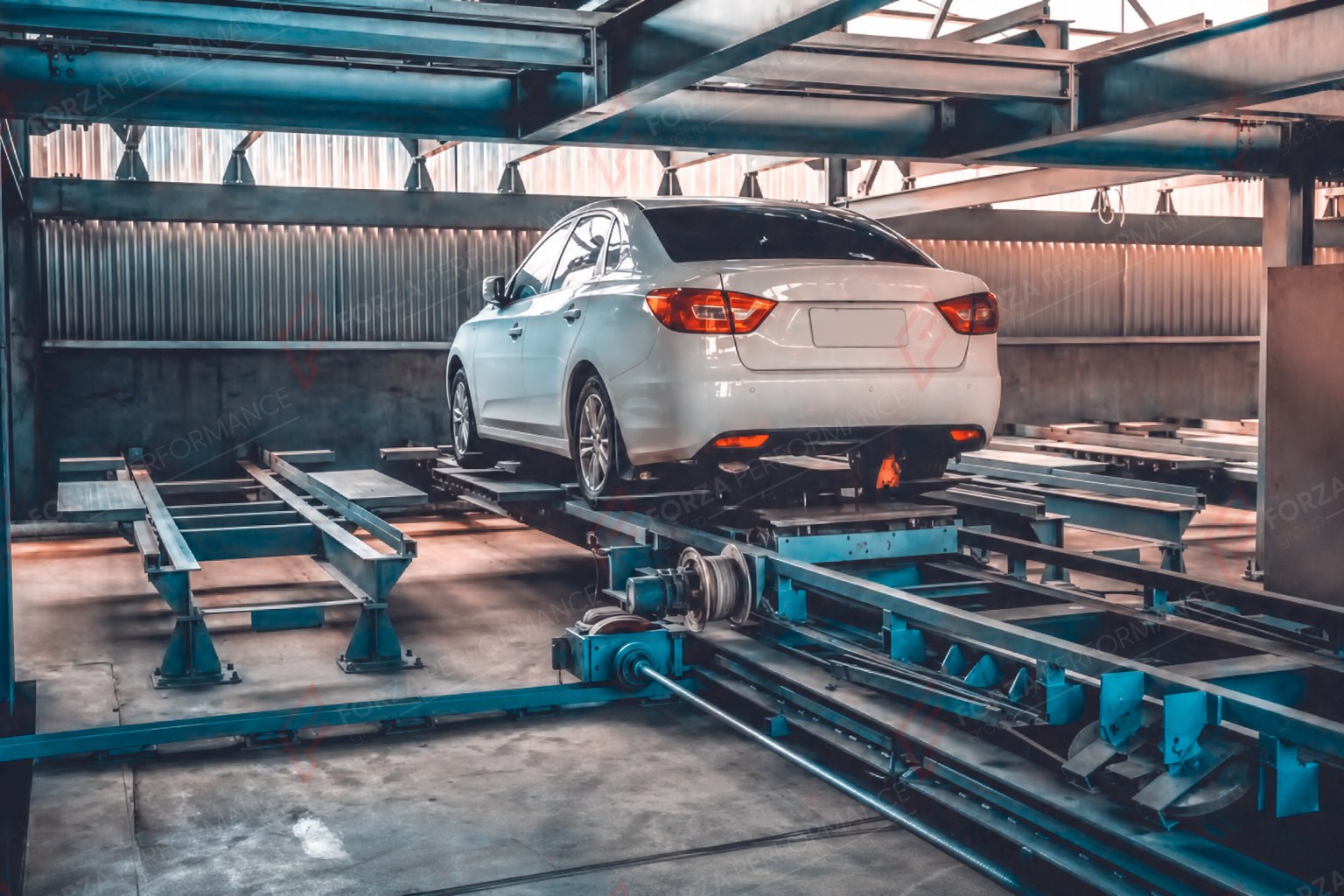

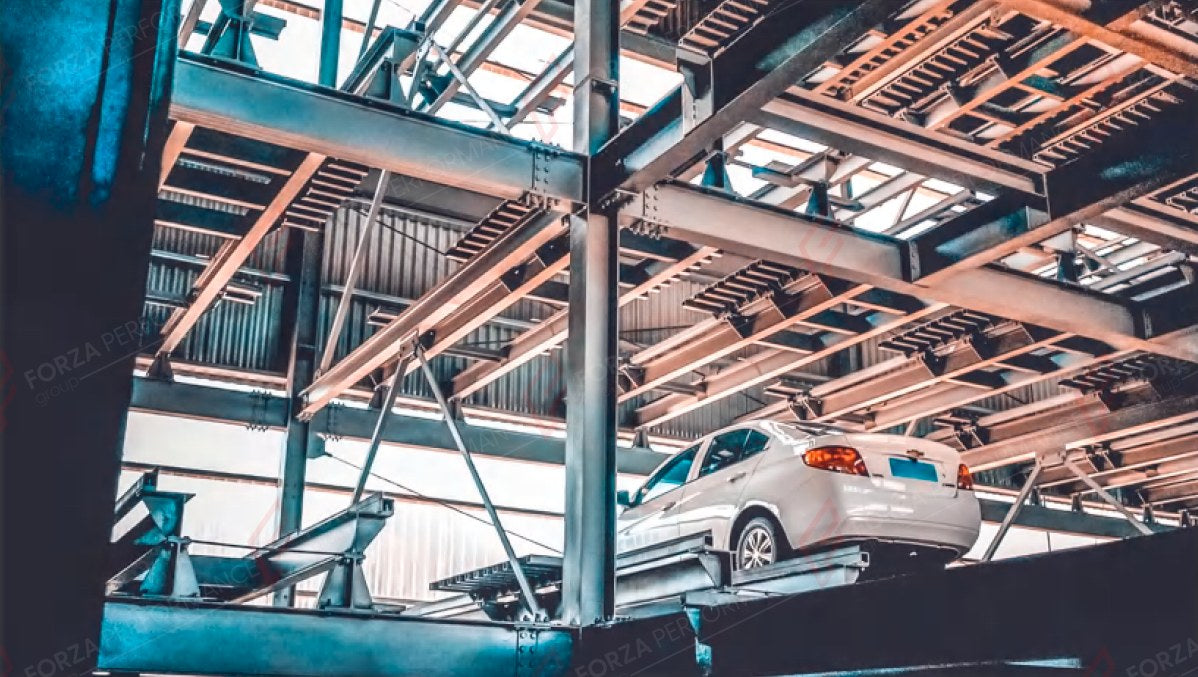

The ASP is a fully automated shuttle parking system - an automated system where a shuttle and lift move cars on pallets to and from storage bays with no driving inside. Each space carries up to 2,500 kg (5,510 lb).
Automated, attendant-free parking
Fast horizontal shuttles and vertical lifts retrieve any car in seconds, maximizing capacity for large commercial and residential developments.
Built to last
Heavy structural-steel frames, CNC-fabricated pallets and a 100% powder-coat finish stand up to daily commercial cycling, with PLC control and independent drive motors.
Safety first
- Mechanical safety locks and anti-drop devices on every pallet
- Photo-electric sensors and vehicle-position detection
- Low-voltage 24 V PLC control
- Overload protection and emergency stop
- Optional card / app access control
Specifications
| Model | ASP |
| Type | Fully automated shuttle parking system (APS) |
| Capacity per space | 2,500 kg (5,510 lb) |
| Platform size | up to 5,200 x 2,050 mm |
| Lift motor | 7.5 / 11 kW |
| Shuttle motor | 2.2 kW |
| Power supply | three-phase, 50/60 Hz |
| Control | 24 V PLC |
Where it works
Large commercial and residential developments and mixed-use projects.
Custom colors, configurations and 220 V single-phase wiring are available on request. Contact Forza Performance Group for a shipping quote and site-specific setup.
