Difference Between 2-piece and 3-piece Wheels

The terms 2-piece wheel and 3-piece wheel refer to the construction of a wheel and how many components or pieces make up the entire wheel structure. These constructions have implications for design, customisation, strength, weight, and manufacturing processes.

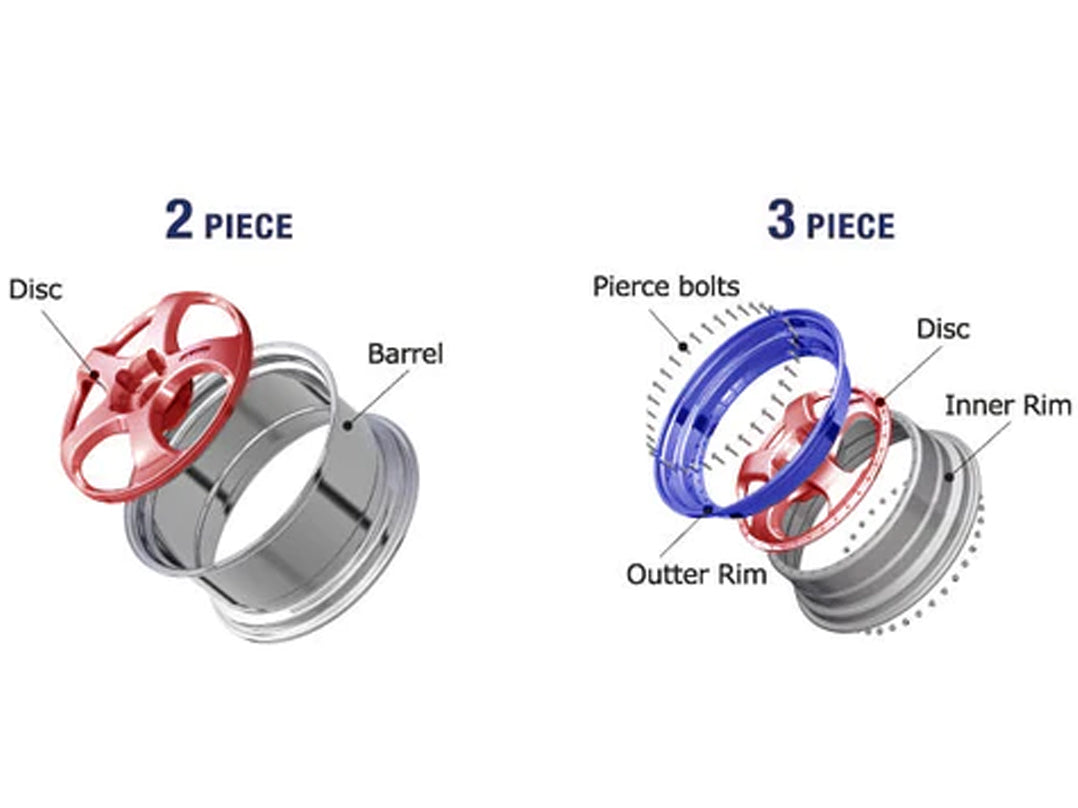

2-Piece Wheel

• A 2-piece wheel is constructed using two main components: the center disc (or hub) and the outer rim (or barrel).
• The center disc is usually made from a single piece of material, often forged aluminum or cast aluminum. It includes the mounting surface for the tire and is attached to the outer rim.
• The outer rim (barrel) is also typically made from aluminum and is welded or bolted to the center disc.

3-Piece Wheel

• A 3-piece wheel consists of three main components: the center disc (hub), inner barrel, and outer rim.
• The center disc is usually made from a single piece of material (similar to the 2-piece wheel).
• The inner barrel is a separate piece that connects to the center disc, and the outer rim (barrel) is another separate piece that connects to the inner barrel.

Key Differences

1. Design Flexibility:

• 3-piece wheels offer more design customization options because of the additional components (inner barrel and outer rim) that can be individually customized in terms of width, offset, color, and finish.
• 2-piece wheels have fewer customization options since there are only two main components.

2. Weight:

• 3-piece wheels can potentially be lighter than 2-piece wheels due to the ability to choose lighter materials for the outer rim and inner barrel.

3. Strength:

• Both 2-piece and 3-piece wheels can be designed to be strong and durable, depending on the materials used and the manufacturing process.
• Some argue that 3-piece wheels can have better strength characteristics due to the ability to optimize materials for different components.



Repair and Maintenance

• In case of damage, 2-piece wheels may be simpler and potentially less expensive to repair or replace.
• For 3-piece wheels, repairs can be more complex and costly due to the additional components.



Cost

• Generally, 2-piece wheels tend to be less expensive than 3-piece wheels due to their simpler construction.

Each type of wheel has its own advantages and considerations, and the choice between a 2-piece and 3-piece wheel depends on factors such as desired design, performance, customization, budget, and intended use of the vehicle.
